Jetway JBC375F3A-2930-B (Intel BayTrail) [http://www.minipc.de/catalog/il/1831] |
|
Jetway JBC375F3A-2930-B (Intel BayTrail) [http://www.minipc.de/catalog/il/1831] |
|
419.00 EUR
incl. 19% VAT, plus shipping |
| Model Name | JBC375F3A-2930-B | JBC375F3AW-2930-B |
| Part Number | HBJC375F3A-2930-B | HBJC375F3AW-2930-B |
| Motherboard Specification | ||
| CPU | Fanless Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Buyrst, Quad-Core, 7.5W TDP/4.5W SDP | |
| Memory | 1 * 204-pin DDR3L-1333 SO-DIMM up to 4GB | |
| VGA | Intel HD Graphics, 313MHz - 854MHz | |
| LAN | 2 * Realtek RTL8111G PCI-E Gigabit LAN | |
| Audio | Realtek ALC662 HD Audio | |
| Storage / Drive Bay | 1 * 2.5" SATA2 3Gb/s drive bay for HDD or SSD 1 * Shared mSATA/mini-PCI Express Combo slot (Full-size) |
|
| Wireless / Mini-PCIE Slot | 1 * Mini-PCI Express slot (Half-size) | Wireless 802.11 b/g/n |
| USB | Embedded 1 * USB 3.0 and 5 * USB 2.0 | |
| Form Factor | 3.5" SBC (148mm x 102mm) | |
| Chassis Specification | ||
| Product size | 180 (W) * 142 (D) * 48 (H) mm | |
| Color | Black | |
| HDD | 1 * 2.5" Hard Disk Drive Bay (Only support SATA 2.5" HDD) | |

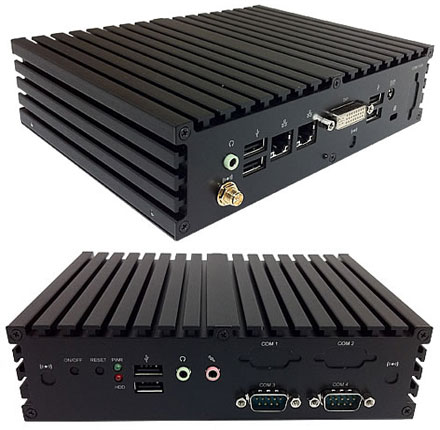

| Front I/O Port | 1 * Power Button 1 * Reset Button 2 * USB 2.0 ports 1 * Line Out Jack 1 * Microphone Jack 4 * RS232 Serial Ports (2 * installed & 2 * cables included in accessory box) 2 * WIFI Antenna holes |
|
| Rear I/O Port | 1 * USB 3.0 ports 3 * USB 2.0 ports 2 * RJ-45 ports 1 * DVI-I port 1 * SMA Connector for WiFi Antenna 1 * Line Out jack 1 * Kensington Lock Hole 1 * +9V ~ +24V DC-in jack |
|
| Other Internal Headers |
These connectors may not be fully usable with chassis closed, but the information is provided for customer alternative uses. 1 * USB Headers for up to 2 * USB 2.0 ports 1 * 24-bit dual channel LVDS connector/inverter (CHRONTEL CH7511B chipset up to 1920 x 1200) 1 * Serial Port Header (RS232/422/485) 1 * 8-bit GPIO header 1 * AT/ATX Mode jumper |
|
| Environment | Operating Temperature : 0 ~ 40°C Storage Temperature : -20 ~ 85°C |
|
| Standard Accessory | - 60W AC-DC Adapter x1 - Power Cord x1 - Wall Mount Kit - DVI-to-VGA adapter x1 - DIN RAIL x2 - CD Disk x1 - Manual x1 - WIFI antenna (with HBJC375F3AW-2930-B model) |
|
| Functional | Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK | |
| Packing |
Color Box Dimension: 250(W) x 118 (D) x 295 (H) mm Gross Weight：2.2KG Net Weight：1.9KG |
|
| Certificate | CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter | |
