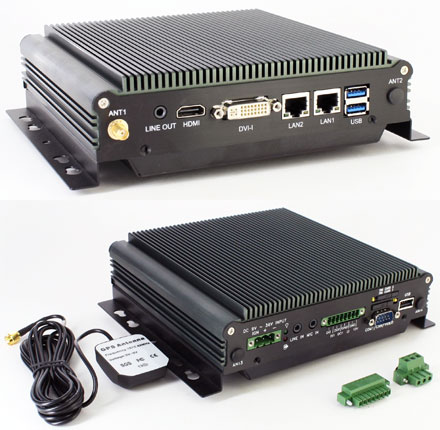

FleetPC-4-C Car-PC (Intel Celeron 2980U 2x1.6Ghz, 4GB RAM, Autostart-Controller, 9-32V Automotive PSU, GPS) [FANLESS]
[http://www.minipc.de/catalog/il/1908]
  9999.00 EUR
incl. 19% VAT, plus shipping

  • Fanless !
  • Auto Power On/Off !
  • eMark certified !
  • GPS !
Support: Device Specification | Manual [EN] | Drivers

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an Intel Celeron 2980U 2x1.6GHz CPU and 4GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]

Features :
- Fanless
- Intel Gen 4 Dual Core Celeron 2980U 1.6GHz CPU
- Integrated, intelligent Automotive power supply
- 1x RS232
- GPS (ublox 6 with G-sensor)
- 2x Gigabit LAN
- DVI-I + HDMI
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 2 x DI / 2 x DO with Relay 12V / 100mA
- Vibration/shock tested

For FleetPC-4-C we offer an direct connector cable for our TFT-dispays.

Dimensions / Weight 182mm W x 167.6mm D x 52mm H, 1.4kg
CPU Intel Gen4 Dual Core Celeron 2980U 1.6 GHz
RAM 1x SO-DDR-3L RAM (up to 8GB) [4GB RAM included]
Graphics Intel HD Graphics
GPS VDB-800SG (ublox 6 with G-sensor)
Expansion - 3x Mini-PCIe
OS Support Windows 7, Windows 8.1, Linux
Vibration & Shock MIL-STD-810F
Operating temperature -40~70°C (with SSD)
Certification CE, FCC, eMark
I/O - 2x Gigabit LAN
- 1x RS232/422/485
- 3x USB2.0
- GPIO port (2in, 2out, with Relay 12V/100mA)
- Mic-In, SPK Out
- 1x DVI-I (for DVI-D and VGA), 1x HDMI
- 4x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
Drive bays 1 x 2.5" SATA HDD/SSD drive bay, 1x SATA DOM
Power supply 9~36V DC PSU included
- Power off Delay Time Setting by Software, Default 5min
- Backup Battery Kit (optional)
Scope of supply - FleetPC-4-C PC with Intel Celeron 2980U (2x1.6Ghz), 4GB RAM, mounting brackets
- 1x Pigtail + Antenna for GPS
