Jetway NFS5Z-IH81 (Intel H81) [http://www.minipc.de/catalog/il/2066] |
![]() |
219.00 EUR
incl. 19% VAT, plus shipping |

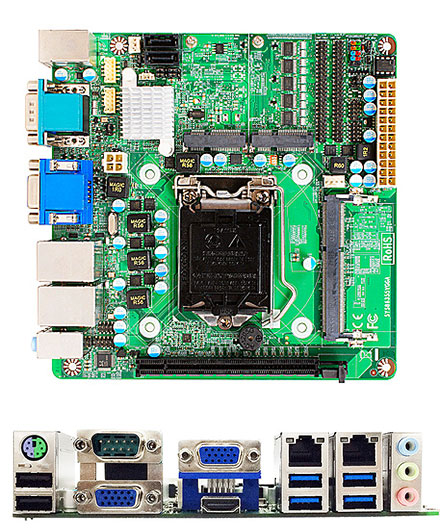

Jetway NFS5Z-IH81 Mini-ITX Motherboard | |
Processor | 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor Socket LGA 1150 (Formerly Haswell) |
Chipset | Intel H81 (AKA Lynx Point) |
Memory | 1 x 204-pin SODIMM DDR3/DDR3L-1600 (up to 8 GB) |
Graphics | Requires Intel Core processor with Intel HD Graphics |
Audio | Realtek ALC662 5.1 Channel Audio |
LAN | 2 x Realtek RTL8111G Gigabit LAN |
Storage | 2 x SATA3 6Gb/s Ports 1 x mSATA/mini-PCI Express Combo Slot (Full-size) |
Super IO | FINTEK F81866A |
Back Panel Connectors | |
1 PS/2 Keyboard/Mouse Combo Port 2 USB 2.0 1 Serial Port (RS232/422/485, +5V/+12V) 2 VGA 1 HDMI 4 USB 3.0 2 RJ45 LAN (10/100/1000) 3 3.5mm Audio |
|
Onboard I/O Connectors | |
1 PCI-E 3.0 x16 Slot (by 16-lane) 1 mSATA/mini-PCI Combo Slot (Full-size) 1 Mini-PCI Express Slot (Full-size) 2 SATA3 6Gb/s Connectors 2 USB Pin Headers for up to 4 additional USB 2.0 Ports 11 Serial port headers (10 * RS232, 1 * RS232/422/485) 1 GPIO header 1 AT/ATX power mode jumper 1 Chassis Intrusion header 1 SIM Card Slot (Bottom) 1 Front Panel header 1 9-pin Front Audio header 1 8-pin LAN activity header 3 Fan headers 1 24-pin ATX Power Connector 1 4-pin 12V ATX Power Connector |
|
Market Segments Supported | |
√ Digital Security & Surveillance √ Digital Signage √ Gaming √ Industrial Automation/Control √ Medical √ Retail (POS/Kiosk/ATM) √ Networking/Storage Server/Mail Server/Print Server √ Thin Client √ HTPC |
