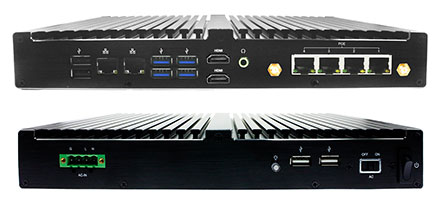

Jetway JBC512F3EG-5200-B (Intel Broadwell)
[http://www.minipc.de/catalog/il/2150]

  769.00 EUR
incl. 19% VAT, plus shipping


  • Product Dimension
  • 264 (W) * 199.4 (D) * 38 (H) mm
  • Product Model
  • JBC512F3EG(W)-5200-B
  • MB Model & Size
  • NF3EP-5200 / 3.5” SBC
  • BIOS
  • AMI 32MB SMT Flash ROM
  • CPU
  • INTEL® Broadwell I5 5200U
  • Memory
  • 2 * SO-DIMM (Dual Channel DDR3L 1333/1600MHz SDRAM)
  • Storage Space
  • 2.5” SATA Device * 1
  • Colors
  • Black
  • Front I/O Port
  • 4 PIN AC Input * 1
  • AC ON-OFF * 1
  • Power LED * 1
  • Power SW * 1
  • USB 2.0 * 2
  • Rear I/O Port
  • USB3.0 * 4 , USB2.0 * 2
  • HDMI * 2
  • Giga LAN Port * 2
  • Audio * 1
  • WiFi Port * 2 (JBC512F3EGW-5200-B only)
  • POE Port
  • 10/100M/1000M Base-TX RJ45 Ports * 4
  • Conforms to IEEE802.3af, IEEE802.3at
  • IEEE 802.3x full-duplex flow control, per port up to 23W
  • Provides 4 PoE injector, per port DC52.5V-0.48A-25W
  • For Switch : Marvell 88E6176
  • For PoE : MAX5980
  • Power Source
  • 150W AC to DC OP Power inside
  • AC 90~240V input
  • Accessory
  • AC Cable * 1
  • 4 Pin Terminal block con * 1
  • User Manual * 1
  • CD * 1
  • Screw Package * 1
  • ­­Packing
  • Net Weight:3.6KG
  • Gross Weight:4.5KG
  • Color Box Dimension:406 (W) x 148 (D) x 359 (H) mm
  • ­­Temperature
  • Operating within 0~50 centigrade
  • Storage within -10-70 centigrade
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • ­­Applications
  • Industrial Control System
  • Networking Server System
  • Security Industry
