Jetway MI12-00V (Intel J3455 Apollo Lake SoC, 2x HDMI, 1x LAN)
[http://www.minipc.de/catalog/il/3201]
  309.00 EUR
incl. 19% VAT, plus shipping

  • Apollo Lake SoC !
  • 10x COM !
  • 2x LAN !
  • mini ITX !
Support: Datasheet

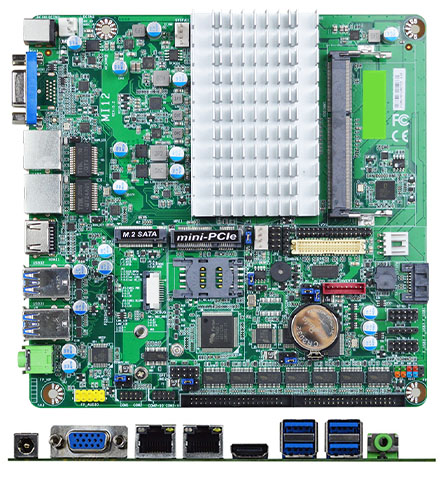

The JETWAY MI12-00V series are Slim Mini-ITX form factor board adopts the Intel® Apollo Lake SoC Processor. The board supports DDR3L 1866MHz SO-DIMM memory, up to 8GB. Featuring the integrated Realtek Gigabit Ethernet controller, the MI12-00V offers 10/100/1000Base-TX Ethernet device for network transmission. SATAIII (6Gb/s) interface, one M.2 (M-key, 2242/2260) and 32GB eMMC (option) offer storage devices. One Mini PCIe interface, four USB3.0 ports, two USB2.0 ports and two COM ports provide versatile expansion. The MI12-00V series offers eDP interface which can support Max. 4K@60Hz resolution. Because of the above features, MI12-00V series is one of the best selections for digital signage and automation applications.




Model

– MI02-00V
– MI02-02V (W/TPM2.0)

Form Factor

– Slim Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

Processor System

– Intel® Apollo Lake SoC Processor
– Intel J3455 SoC chipset
– AMI 128Mb Flash ROM BIOS

Expansion Slot

– 1* Mini PCIe (full size, USB signal only)
– 1* SIM card slot

Memory

– 1* DDR3L 1866MHz SDRAM SO-DIMM up to 8GB

Graphics

– Intel® HD Graphics
– 1* HDMI (Max. Resolution: 3840 x 2160@30Hz)
– 1* VGA (Max. Resolution: 1920 x 1200@60Hz)
– 1* LVDS (Max. Resolution: 1920 x 1200@60Hz, selectable with eDP, not working while using LVDS)
– 1* eDP (Max Resolution: 4096 × 2160@60Hz, selectable with LVDS, not working while using eDP)
– Support triple displays

Ethernet

– 2* Realtek RTL8111H GbE

Audio

– C-Media HS-100B USB Audio Chip

Storage

– 1* SATAIII (6.0Gb/s)
– 1* M.2 M-key 2242/2260 (SATA interface)
– 32GB eMMC (option)
eMMC is recommend to set as primary boot device for Windows 10 OS boot up

Rear I/O

– 2* RJ45
– 4* USB3.0
– 1* HDMI
– 1* VGA
– 1* Line-out
– 1* DC-in

Internal Connector

– 5* USB2.0
– 9* RS232 (COM1~3 with Powered 5V/12V)
– 1* RS232/422/485 (COM1)
– 1* SATAIII
– 1* Mini PCIe (full size)
– 1* M.2 M-key 2242/2260 (SATA interface)
– 1* LVDS (Selectable with eDP, not working while using LVDS)
– 1* eDP (Selectable with LVDS, not working while using eDP)
– 1* GPIO (4in/4 out)
– 1* SMBUS
– 1* AT mode
– 1* SIM card holder
– 1* PS/2
– 1* TPM2.0 (MI12-02V optional)

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments, 0,1,2…255sec

Power

12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C (with 0.7m/s air flow)
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux
