MB Model

– MF13-00 (J6412)

Part No

Non-WiFi

M.2 ac Wifi card

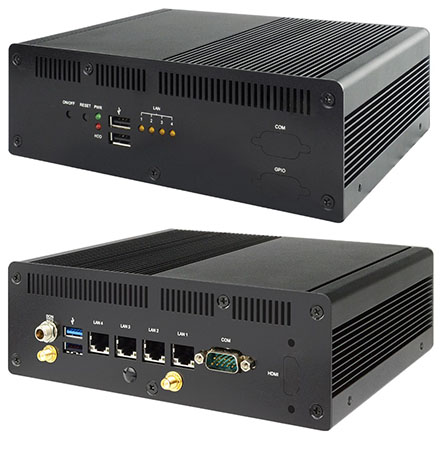

– HBFDF13-6412-B (Default)

– HBFD13I-6412-B

CPU/Chipset

– Intel® Elkhart Lake SoC Processor / Default: J6412

Memory

– 1 * SO-DIMM DDR4-3200MHz up to 16GB

Storage

– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a height ≤ 10mm)
– 1 * M.2 M-KEY(2242/2280,SATA/PCIe Gen.3×2)support NVME

Network

– 4 * Intel® i225V 2.5GbE

Expansion slot

– 1 * M.2 E-KEY(2230,USB2.0/PCIe Gen.3×1)
– 1 * M.2 B-KEY(3042/3052,USB3.1)

Front Panel I/O

– 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB2.0
– 4 * NIC LED
– 1 * COM & 1 * GPIO (option)

Rear Panel I/O

– 4 * RJ45 (4 * i225V)
– 1 * USB3.1, 1*USB2.0
– 1 * HDMI (Reserve, Max. resolution:4096 x 2304@24Hz)
– 1 * RS232/422/485
– 1 * DC-in jack Lock type

Other Features

– TPM2.0 (On board option)
– 0~255 segments by software programmable

Power Source

– Adapter : AC 90~240V input / DC12V-60W output
– MB : DC12V input

Compliance

– CE, FCC, LVD, RoHS

Temperature

– Operating Temperature: -20 ~ 60° C (Under the condition of using mSATA or SSD)
-Operating Temperature: 0 ~ 60° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
-Storage Temperature: -20 ~ 70° C
-Humidity: Between 40% and 60%, non-condensing

Dimensions

– 193 (W) x 142.4 (D) x 62 (H) mm

Packing

– Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm

OS Support

– Windows 10, Windows 11, Linux
