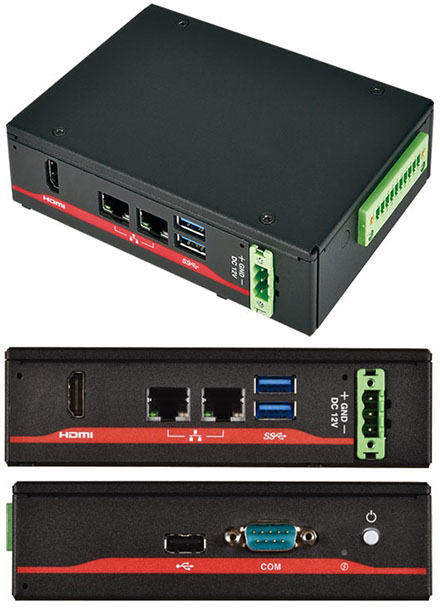

Mitac ME1-8MQ-4G32G (NXP i.MX8M Processor, 2x LAN, HDMI + DisplayPort) [FANLESS] [http://www.minipc.de/catalog/il/3335] |
![]() |
429.00 EUR
incl. 19% VAT, plus shipping
|
CPU | NXP® i.MX8M Family - 8M Quad (4 x Cortex-A53 @ 1.3GHz) - 8M Dual (2 x Cortex-A53 @ 1.3GHz) |
CHIPSET | i.MX8M SoC Integrated |
SYSTEM MEMORY | LPDDR4 Onboard Memory with Options: 1GB (1200MHz), 2GB (1600MHz), 4GB (1600MHz) |
GRAPHICS | I.MX8 Integrated |
STORAGE | 1 x Micro SD card slot (Up to 256GB) / Onboard eMMC with Options for 8GB / 16GB / 32GB |
ETHERNET | 1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN |
AUDIO | Realtek® ALC5660 |
SIDE I/O | 1 x Micro SD/SIM card slot / 1 x GPIO 10-pin (4in/4out/5V/GND, Terminal Block) |
EXPANSION SLOT | Mini PCIe Full / Half size (PCIe / USB) |
INDICATOR | Power Button / Power LED |
FRONT I/O | 1 x USB 2.0 / 1 x RS232 / 422 / 485 |
REAR I/O | 1 x HDMI 2.0 / 1 x DisplayPort 1.2 / 2 x RJ-45 / 2 x USB 3.0 / 1 x 3-pin Terminal Block Power Input |
POWER ADAPTER | DC12V / 3A / 36W adapter |
OPERATING TEMPERATURE | 0 ~ 55°C (32 ~131°F) |
STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) |
OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) |
STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing |
CERTIFICATION | CE / FCC Class B |
ANTENNA | 2 x SMA Antenna (Optional for WiFi / LTE function) |
THERMAL DESIGN | Fanless & Ventless |
MOUNTING | Wallmount / VESA Mount (75 x 75mm) 2-in-1 Bracket |
DIMENSIONS (W X D X H) | 140 x 100 x 38.75mm |
MATERIAL | Enclosure: Sheet Metal |
OS SUPPORT | Yocto Sumo (Kernel version 4.14.98) BSP Support / Android 9 Pie (Kernel version 4.14.98) BSP Support / (Remark: Android is suggested for 4G memory MB SKU) |
PACKAGE | 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 10P terminal blcok male plug |
