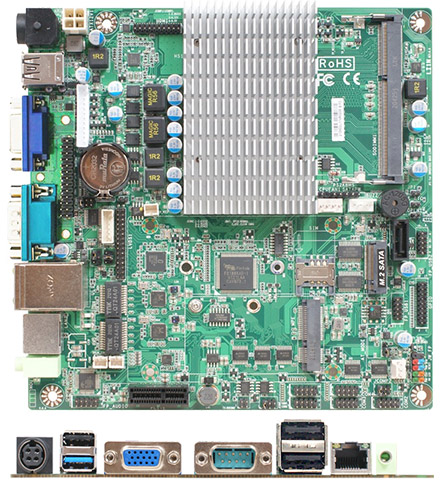

Model

– JLI1N-00

Form Factor

– ITX ( 170 * 170mm)

Processor System

– Intel® Bay Trail J1900 2.0GHz/QC, 10W, Core MCP Processor (Turbo 2.42GHz)
– AMI 32M Flash ROM BIOS

Memory

– 1* DDR3L 1333MHz SO-DIMM up to 8GB

Storage

– 1* SATAII (3.0Gb/s)
– 1* M.2 M-key (2242/2280, SATA interface)

Expansion

– 1* Full size Mini PCIe
– 1* PCIe x1
– 1* SIM card slot

Ethernet

– 1* Realtek RTL8119I GbE

Graphics

– Intel® Z3700 Graphics, shared memory
– 1* HDMI 1.4 (Max Resolution: 2560×1600@60Hz)
– 1* LVDS (Max Resolution: 2560×1600@60Hz)
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– Support Dual Displays

Audio

– USB Audio, 3W Amplifier

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Internal I/O

– 4* USB2.0
– 1* RS232/422/485
– 4* RS232
– 1* SATAII
– 1* SATA power
– 1* M.2 (M-key, 2242/2280)
– 1* Full size Mini PCIe
– 1* GPIO (16bit, 5V, Co-lay Parallel)
– 1* PCIe x1
– 1* SIM card slot
– 1* AT mode
– 1* Case Open
– 1* FP_Audio Header
– 2* 3W Amplifier
– 1* CPU FAN

External I/O

– 1* VGA
– 1* RJ45
– 1* USB3.0
– 3* USB2.0
– 1* RS232
– Line-out
– 12V DC-in

Power

DC-in 12V
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 7 / 8 /10, Linux
