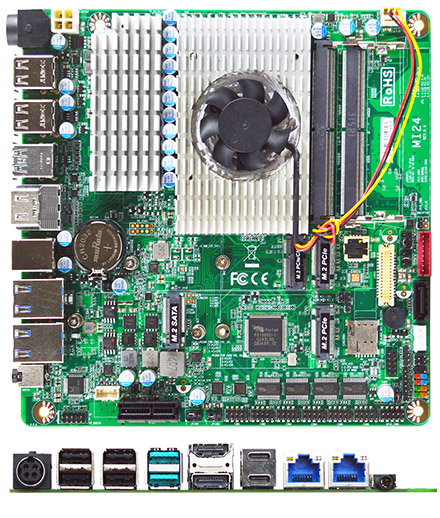

Jetway MI24-13350 MiniITX (Intel Raptor Lake-P i5-1335U SoC, 2x USB-C, 2x 2.5GbE LAN)
[http://www.minipc.de/catalog/il/3480]

  789.00 EUR
incl. 19% VAT, plus shipping

  • i5-1335U onboard !
  • 12-24V DC-in !
  • 6x USB !
  • 2x USB-C !

The JETWAY MI24 Series adopts the Intelฎ Raptor Lake-P i5-1335UE/i5-1335U SoC processor support 15W TDPs SKU. MI24 Series equipped with the latest two DDR5 5200MHz SO-DIMM up to 64GB, one M.2 M-key (2242/2280) support NVMe, one M.2 M-key (2242), one SATAIII for storage choices. For versatile expansions, the MI24 Series provides one M.2 E-key (2230) support CNVi for WiFi, one M.2 B-key (3042/3052) for 4G/5G module, and one PCIe Gen.3 x1 slot. MI24 Series also has seven USB2.0, two USB3.2 (Gen.2) up to 10Gbps, two USB3.2 (Gen.2) Type-C support ALT mode for multiple hub expansion application with four RS232 and two RS232/422/485 so customers can connect different peripherals to meet their needs. MI24 Series also has two HDMI2.0b and one internal LVDS (co-lay eDP) to support triple displays. MI24 Series designs provide rich features which can be used for Industrial Automation and KIOSK needs.




Model

– MI24-133E0 (Default: i5-1335UE)
– MI24-133E2 (i5-1335UE, onboard TPM2.0)
– MI24-13350 (i5-1335U)
– MI24-13352 (i5-1335U, onboard TPM2.0)

Form Factor

– Slim ITX (170 * 170mm)

Processor System

– Intelฎ 13th Raptor Lake-P i5-1335UE/i5-1335U SoC Processor
– AMI Flash ROM BIOS
* Support recover crashed BIOS data tool by a USB flash pen driver: Using JetBIOS SW back up tool with any external USB ports

Memory

– 2* DDR5 5200MHz Dual Channel SO-DIMM up to 64GB

Storage

– 1* SATAIII (6 Gb/s)
– 1* M.2 M-key (2242/2280, PCIe Gen.4ื4 interface) support NVMe
– 1* M.2 M-key (2242, SATA interface)

Expansion

– 1* M.2 E-key (2230, USB2.0/PCIe x1 interface) support CNVi for WiFi
– 1* M.2 B-key (3042/3052, USB3.1/USB2.0/PCIe x1 interface) for 4G/5G module
– 1* PCIe Gen.3 x1

Ethernet

– 1* Intel i225-LM 2.5GbE
– 1* Intel i225-V 2.5GbE

Graphics

– Intelฎ Irisฎ Xe Graphics, shared memory
– 2* HDMI 2.0b (Max Resolution: 4096ื2304@60Hz)
– 1* 24 Bit Dual Channel LVDS/eDP (Max Resolution: 1920 x 1200@60Hz)
– Support Triple Displays

Audio

– HD audio: Realtek ALC888S + 3W Amplifier

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Internal I/O

– 3* USB2.0
– 4* RS232
– 2* RS232/422/485
– 1* LVDS (eDP option)
– 1* SATAIII
– 1* Speak connector
– 1* Audio Header
– 1* SIM Card Slot
– 1* PS/2
– 1* SMBUS
– 1* 8-bit GPIO
– 1* Chassis intrusion
– 1* AT mode

External I/O

– 2* USB3.2 (Gen.2)
– 2* USB3.2 (Gen.2) Type-C support DP ALT mode and PD 5V/3A
– 4* USB2.0
– 2* HDMI
– 2* RJ45
– 1* Audio Jack (Line-out/MIC combo)
– 12~24V 4-pin DC-in PWR jack

Power

12~24V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, LVD, RoHS, REACH

Temperature

– Operating Temperature: 0 ~ 60ฐ C
– Storage Temperature: -20 ~ 85ฐ C
– Humidity: 10% ~ 90% RH @40ฐC (non-condensing)

OS Support

– Windows 10 / 11, Linux
