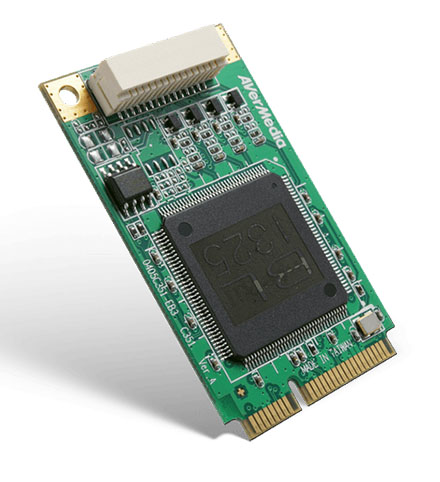

AVerMedia C351W MiniPCIe CaptureCard (SD Quad-Channel)
[http://www.minipc.de/catalog/il/3530]

  469.00 EUR
incl. 19% VAT, plus shipping

  • Quad-Channel !
  • Extended Temperature !
  • -40 to 85°C !
Support: Specifications

The DarkCrystal SD Capture Mini-PCIe Quad simultaneously preserves up to four channels from multiple composite input sources, reducing system costs. DarkCrystal SD Capture Mini-PCIe Quad makes use of exclusive hardware design guarantying fast response and solid performance for high-density SD capture or encoding demands.

The DarkCrystal SD Capture Mini-PCIe Quad simultaneously preserves up to 4 channels from multiple composite input sources, reducing system costs.



Module Type PCI Express Minicard
Input 4-ch Composite
Audio(L/R)
Video Resolution NTSC (29.97Hz): 720 x 480, 640 x 480, 360 x 240, 320 x 240, 180 x 120, 160 x 120
PAL (25Hz): 720 x 576, 640 x 480, 360 x 288, 180 x 144
Color Adjustment Brightness, Contrast, Hue (NTSC only), Saturation
Operating Environment Temperature: -40 to +85 ℃
Humidity: 0 to 90% RHNC
Storage Environment Temperature: -50 to +85 ℃
Humidity: 0 to 90% RHNC
Power Requirement 1.13W
Dimensions (L x W) 50.95 x 30mm
System Requirements
CPU IntelŪ PentiumŪ4 3.0 GHz
AMD AthlonTM 64 3200+
Memory 512 MB RAM
VGA VGA card with support for DirectX9.0c or above
Sound Card Yes
Supported OS Windows 7/8.1/10 (32/64 bits), Linux (32/64 bits)*
