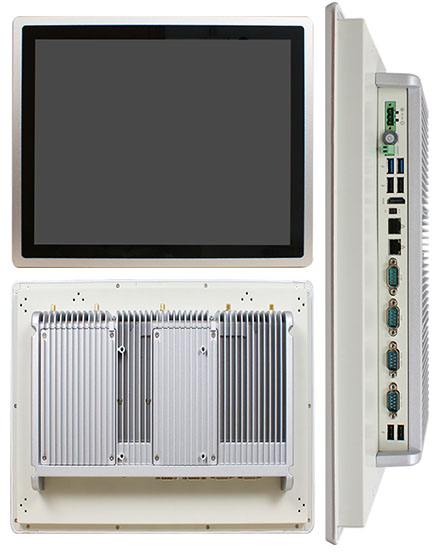

Model

– HPC170C-DCP1135G7

Main System

– Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.

Display

– IP65, NEMA 4 rugged protection, metal front bezel
– 17.0″ With LED Backlight
– 350 nits
– 16.7m display color
– 1280 x 1024 @60Hz resolution
– 170°/160° viewing angle (H/V)
– 0.264 x 0.264mm pixel pitch
– 4:3 aspect ratio
– 1000:1 contrast ratio
– 3.5ms response time

Touch Screen

– Projected capacitive type
– 372.92 x 305.34mm ±0.3mm active range
– Transparency≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)

I/O Connector

– 2* USB3.2 (Gen. 2)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button

Storage

– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)

Expansion

– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)

Case

– Aluminum panel
– Iron case
– White color
– Spray paint coating requirement

Power

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
– Consumption: 47.5W

Compliance

– CE, FCC, IP65 (Front), Option

Safety

– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms

Dimensions

– 400.9 x 333.3 x 65.0mm

Temperature

– Operating Temperature: -10 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
