Data-Sheet - ASUS NUC14RVBi3 Board (Intel Core 3 100U, 2C+4c/8T, up to 4,7GHz, 2x HDMI, 2x Thunderbolt 4

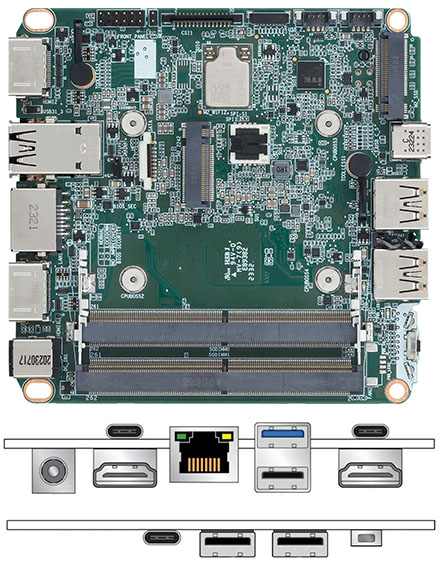

ASUS NUC14RVBi3 Board (Intel Core 3 100U, 2C+4c/8T, up to 4,7GHz, 2x HDMI, 2x Thunderbolt 4
[http://www.minipc.de/catalog/il/3631]

309.00 EUR
incl. 19% VAT, plus shipping

Formfactor: UCFF (4"x4")
CPU: Intel Core 3 100U, 2C+4c/8T, 1.20-4.70GHz, 10MB+8MB Cache, 15-55W TDP (PBP/MTP), Codename "Raptor Lake-U" (Raptor Cove + Gracemont, Intel 7)
RAM Slots: 2x DDR5 SO-DIMM, dual PC5-41600S/DDR5-5200, max. 96GB (UDIMM)
Storage: 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 2242)
Graphics: Intel Graphics (iGPU), 4Xe/64EU/512SP, 1.25GHz, Architektur "Xe-LP / Gen 12.2" (Raptor Lake GT1)
Connectors rear: 1x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 2x Thunderbolt 4 (40Gb/s), 2x HDMI 2.1, 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x 1x DC-Connector
Connectors front: 1x USB-C 3.2 (20Gb/s), 2x USB-A 3.1 (10Gb/s)
Wireless: Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211, soldered), Bluetooth 5.3
Powersupply: external, 1x DC-in (90W/19V)
Specials: 4x Display Support, suitable for continuous operation

RAM and SSD not included!
