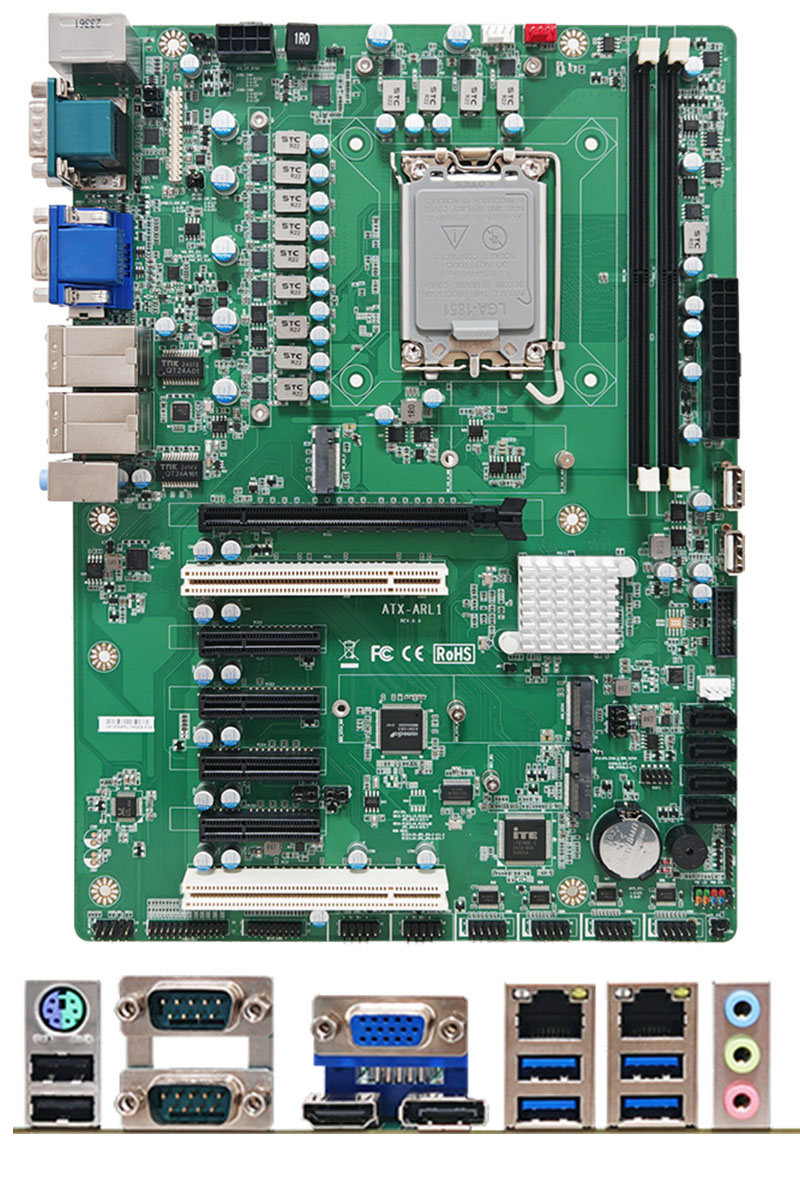

Jetway ATX-ARL1-B860 ATX (Intel B860 Chipset, Socket LGA1851, Arrow Lake-S, 1 x VGA, 1 x HDMI, 1 x DP) [http://www.minipc.de/catalog/il/3841] |
|
Jetway ATX-ARL1-B860 ATX (Intel B860 Chipset, Socket LGA1851, Arrow Lake-S, 1 x VGA, 1 x HDMI, 1 x DP) [http://www.minipc.de/catalog/il/3841] |
|
0.00 EUR
incl. 19% VAT, plus shipping
|
| SYSTEM | |
| MB FORM FACTOR | ATX |
| CPU | Intel® LGA1851 Socket Ultra 9/7/5th Gen Processor (Max. TDP 125W) |
| CHIPSET | Intel® Arrow lake-S B860 |
| MEMORY | 2 x DDR5 6400MT/s, Dual Channel U-DIMM, up to 96GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) & TPM 2.0 (dTPM) |
| RTC BATTERY | Lithium Battery |
| DIMENSION (W X D) | 305.0 (W) x 220.0 (D) mm (12" x 8.7") |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | ATX Power Supply |
| POWER ON MODE | AT / ATX (Default) Mode |
| CONNECTOR | 24+8-pin ATX PWR |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| DP | 1 x DP2.1 (Max Resolution: 7680x4320@60Hz) |
| HDMI® | 1 x HDMI® 2.0 (Max Resolution: 4096 x 2304@60Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| Line-in | 1 x Audio Jack for Line-In |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I219-V GbE |
| USB PORT | |
| USB | 4 x USB 3.2 Gen 1 2 x USB 2.0 Internal Header for 2 x USB 3.2 Gen 1 Internal Header for 4 x USB 2.0 Internal USB Type A (Vertical) for 2 x USB 2.0 |
| SERIAL PORT | |
| COM | 2 x DB-9 for RS-232/422/485 Internal Header for 4 x RS-232 |
| INTERNAL I/O | |
| GPIO | 16 bit GPIO (5V) Co-lay LPT |
| SMBUS | Yes |
| FAN | 1 x CPU Fan Header 2 x System Fan Header |
| FRONT PANEL | HDD Active LED Power LED Power On/Off Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x AT/ATX Mode Selection |
| STORAGE | |
| SATA | 4 x SATA III |
| EXPANSION | |
| M.2 | 1 x M-key 2242/2280 (SATA interface, Co-lay SATA4) 1 x M-key 2242/2280 (PCIe Gen5x4) Support NVMe 1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVio for Wi-Fi |
| PCIe | 1 x PCI-Ex16 (Gen.4) slot 4 x PCI-Ex4 (Gen.4, PCIE2/PCIE3 Interface: PCI-Ex1) slots 2 x PCI |
| OTHERs | |
| OTHER | 1 x PS/2 |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS REACH |
