MH700-S - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , Full metal enclosure) -TRANSFLECTIVE PRO-

PRODUCT IS CURRENTLY NOT AVAILABLE !
MH700-<b>S</b> - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (<b>600nits , Full metal enclosure</b>) <b>-TRANSFLECTIVE PRO-</b>
3D 360° View
  • High brightness !
  • One-cable-4-all !
  • Full metal case !
  • 600 nits !

With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is
[more]

Share

Front
Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1080
Native resolution 800x480
Dot resolution 2400x480
Brightness 600
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 182 x 120 x 30 mm
Visible area 158 x 85 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
yes Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The MH700 delivers an impressive 600 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is fully wrapped into a metal enclosure, the temperature range is -35°C to 85°C. The contrast ratio is 650:1.

The new MH700 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night. On the rear side there is a touchscreen pencil integrated.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The MH700 can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..




The display is vibration- and shock-tested (BS EN 61373 : 1999).


Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz


Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 7" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Power input DC 11-24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 182x120x30 mm
Display : 158 x 85 mm
Video input signal 1.0Vp-p, composite video
Brightness 600 cd/m²
Contrast 650:1
Vibration IEC68-2-6
Operating Temperature -30° bis 85°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
Auto Power On/Off
Touchscreen-pencil integrated in rear enclosure
Autodimmer

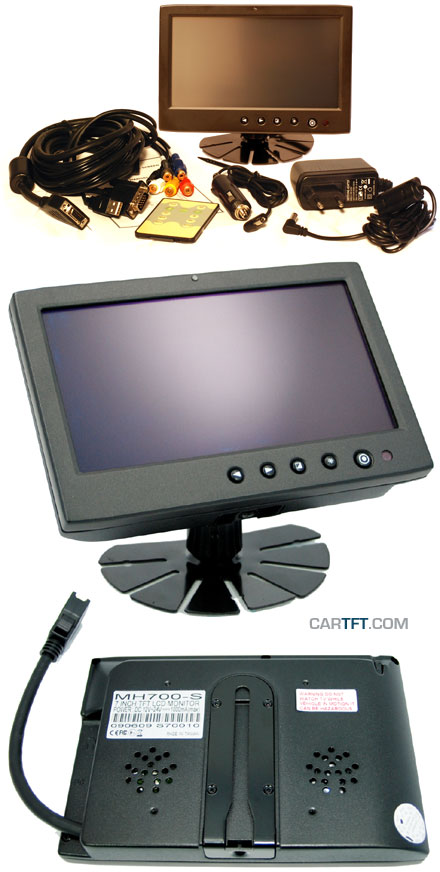

What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet Print view
800x480 Driver (Windows 7) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 3 ratings
4 von 5 Sternen from Dm7 Accord am 14.07.2011

The monitor has a really outstanding performance in bright sunlight as well as in usual conditions, but ... I have never met that Hitachi T18D16VM series TFT (that MH700-S is uses) is transflective. I only sure that there is mistake in technical data above: visible area is NOT 158 x 85 mm, but 152.4 x 91.44 mm, so aspect ratio is rather 15:9. I also want to "thank" cartft support for attantion to customers.

4 von 5 Sternen from alexmonovero am 20.10.2010 | See all my comments

A great screen to put it in the car since he has the new technology in order that it does not reflect with the solar light. In addition it has a tactile very useful paper

3 von 5 Sternen from albert.steiner am 30.11.2009 | | See all my comments

Ganz tolles Gerät auch bei hellstem Sonnenschein alles lesbar,
super Verarbeitung, hatte das Pech das er nach 14 Tagen den Geist aufgab, aber dickes Lob an die Reperaturabteilung für die schnelle Reparatur ...
