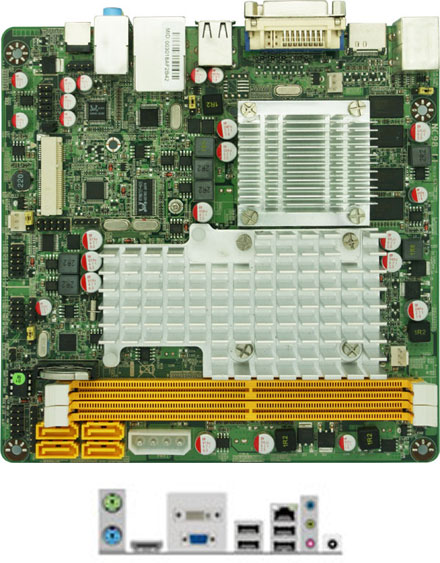

Jetway NC98-525-LF (Intel Pine Trail-D)

Jetway NC98-525-LF (Intel Pine Trail-D)

  • INTEL® Atom Processor D510 / D525 + NM10 Express Chipset +NVIDIA® ION2 GPU
  • Support INTEL® Atom Processor D510 / D525
  • Support Single Channel DDR 800 / 667
  • Supports 10 / 100 / 1000 LAN
  • Integrated ALC662 HD Audio CODEC with 6-CH
  • Compliance with EuP standard
  • Support CPU Smart FAN
  • Support ACPI S3 Function
  • Support Power on board

Product Accessories
- COM cable
- Manual
- CD
- 2x SATA cable
- I/O shield
- SATA-Slim ODD Cable+Power

Share

198.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)

Add to cart
CPU INTEL ® Atom Processor D510 (45nm, 1.66GHz,1024MB L2 Cache) INTEL ® Atom Processor D525 (45nm, 1.80GHz,1024MB L2 Cache)
Chipset INTEL® Atom Processor D510 / D525 +NM10 Express Chipset
Memory 2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
Storage 4 * Serial ATA2 3Gb/s connectors. SATA 3 & 4 Support RAID 0, 1, JBOD
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Realtek 8111DL 10/100/1000 LAN
USB Embedded 7 * USB 2.0/1.1
Special Features Intel Atom Processor D510 / D525 Support DC FAN Support CPU Smart Fan
Rear Panel I/O 4 * USB 2.0/1.1 ports 1 * PS/2 KB/MS Connector 1 * Audio I/O ports ( Line-in, MIC and Line-out ) & 1 * Optical Out 1 * VGA port / 1 * DVI-D port / 1 * HDMI port 1 * 12V DC in 1 * Gigabit LAN
Internal I/O 2 * USB 2.0 headers for 3 * USB 2.0 ports 3* FAN headers 1 * CD IN /1 * GPIO 1 * AUDIO header 1 * CIR header 1 * COM header 1 * MINI PCI-E connector
BIOS AMI Flash ROM Write protect
Functional Data Storage, medical Equipment, Media Center application, Networking, General Application, Gaming Machine
Certificate CE, FCC, RoHS
Temperature Operating within 0~50 centigrade (Suggest to use system FAN) Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor(17cmx17cm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
