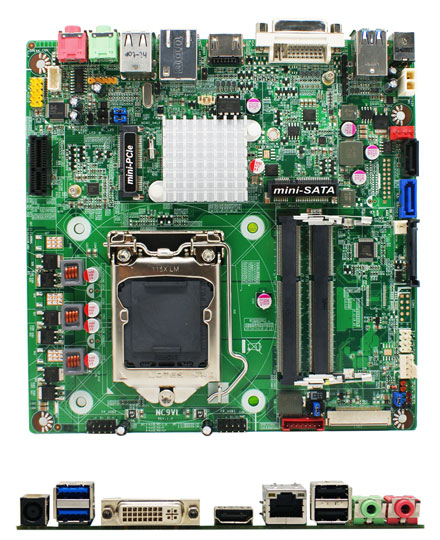

Jetway JNC9VL-H81 (Intel H81)

Jetway JNC9VL-H81 (Intel H81)

  • Intel® H81 Chipset
  • Supports Intel LGA 1150 Socket 4th Generation Core™ i3, i5, i7 & Pentium Processors
  • 2 * Dual Channel SO-DIMM DDR3-1333/1600 up to 16GB
  • 1*HDMI output
  • Support CPU Smart FAN
  • Supports 1 * Gigabit LAN
  • Supports ACPI S3 Function
  • Support Watch dog Technology
  • Thin Mini ITX form factor


Share

219.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
CPU INTEL® LGA 1150 Socket 4th generation Core i7/i5/i3/Pentium Processor
Chipset INTEL® H81 Chipset
Memory 2 * SO-DIMM Sockets Dual Channel DDR3 1600/1333 SDRAM up to 16 GB
Expansion Slots 1 *PCIe x 1 1 * half size Mini PCI-E socket
Storage 1 * Serial ATA2 3Gb/s & 1 * Serial ATA3 6Gb/s connectors 1 * full size mSATA socket (only mSATA)
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Intel i217LM Gigabit Ethernet LAN *1
USB 6* USB 2.0/1.1 & 2 * USB3.0
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 2 * USB 2.0/1.1 & 2 * USB 3.0 ports 1 * HDMI 1 * DVI-I port 1 * 19V DC-in jack 1 * RJ-45 port 1 * MIC-in & 1 * Line-out jacks
Internal I / O 2 * USB 2.0/1.1 headers CPU /System Fan connectors; 1 * PS/2 header 1 * 24-bits Dual CH LVDS & 1 * Inverter connector 1 * CIR header 1 * AUDIO header 1 * Speaker header 1 * DMIC header 1 * Front panel header 1 * FPD Brightness connector 1 * 2-pin ATX Power header 1 * 2-pin open case header
BIOS AMI 64Mb DIP Flash ROM
Form Factor Thin Mini ITX Form Factor (170mm x 170mm)
Functional ATM, POS, AIO, Panel PC, Digital Signage
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
