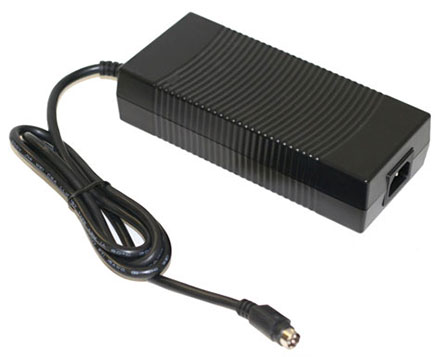

- 192W !
- Model: STD-12160
- FANLESS !
For connecting PicoPSU-150-XT/PicoPSU-160-XT (additional Mini-Fit-JR adapter cable needed) to the standard 230V house power net.
- Dimensions: 183 x 81 x 42 mm
- Connector : 4 pin Mini DIN
- Efficiency : >=87%
- CEC, Energy Star Level V & ErP Stage 2 & NRCan
- No Load Power Consumption Less Than 0.5W
PicoPSU-adapter cable 4 pin Mini DIN to Mini-Fit-JR not included.
Power cord (cold devices connector) not included.
incl. 19% VAT, plus shipping
In Stock (815 pcs)
|Model||Output Voltage||Output Current||Watt|
|Protection||Internal Primary Current Fuse|
|Configuration||IEC60320 / C14|
|Load Regulation||± 5% (Typical)|
|Ripple||3~5% Vp-p Max. for Output Voltage @ Full Load|
|Transient Response||0.5mS for 50% Load Change Typical|
|Holdup Time||10mS @ Full Load|
|Protection||Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/Over Temperature Protection
|DC Cord||UL2464 / 16AWG|
|Ferrite Core||No (Optional)|
|CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC / RCM|
|Dielectric Withstand||3,000 VAC Primary – Secondary|
|Leakage Current||3.5mA @ 3 Pin|
|Efficiency||Engergy Star Level V, ErP Stage 2 & NRCan Certified|
|EMI Conduction&Radiation;||Compliance to EN55022 Class B|
|Harmonic Current||Compliance to EN61000-3-2,3|
|EMS Immunity||Compliance to EN61000-4-2,3,4,5,6,8,11|
|MTBF||300,000 Calculated Hours at 25°C, by Telcordia SR-332|
|Operaturing Temperature||0 to +40°C|
|Storage Temperature||-20 to +80°C|
|Relative Humidity||Operating: 20 to 80% RH|
|Storage: 10 to 90% RH|
|Cooling||Natural Convection Cooling|
|Case Dimension||L183 x W81 x H42 (mm)|
