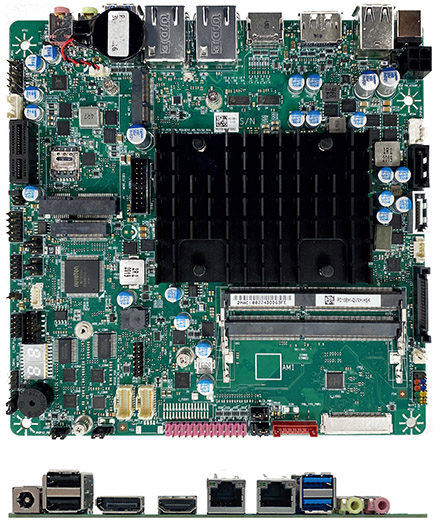

Mitac PD10EHI-N6415 (Intel DN2800MT5) Thin-ITX (Intel Elkhart Lake N6415 4x3.0Ghz CPU, 8-24VDC) [FANLESS]

Mitac PD10EHI-N6415 (Intel DN2800MT5) Thin-ITX (Intel Elkhart Lake N6415 4x3.0Ghz CPU, 8-24VDC) <b>[FANLESS]</b>
  • Intel Elkhart !
  • Dual INTEL LAN !
  • Multi expansion Slot !
  • up to 32GB RAM !

This board is produced by MITAC, the OEM producer of Intel DN2800MT. This board is based on Intel DN2800MT, but is equipped with the modern Intel Elkhart Lake plattform. PD10EHI is available until at least Q4/2027.

  • Intel® Elkhart Lake ATOM/Celeron/Pentium BGA Processor (TDP up to 12W)
  • Support 2 x DDR4 SO-DIMM (Up to 64GB)
  • Support Triple Display for HDMI, DisplayPort, and LVDS/eDP
  • Support 1 x PCIe X1 (Gen 2) slot, 2 x M.2 slot, 2 x SATA III and 1 x mPCIe slot
  • 4 x USB2.0, 2 x USB3.1 Gen2, 6 x COM and 1 x Parallel Port / MiAPI (configurable digital I/O)
  • 8V~24V wide voltage power input


289.95 EUR
incl. 19% VAT, plus shipping
In Stock (12 pcs)

5 von 5 Sternen
1 ratings
Add to cart
MECHANICALFORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEMPROCESSORIntel® Elkhart Lake Pentium N6415
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® HD Graphics
ETHERNET2 x Intel® I211-AT Giga LAN
AUDIORealtek® ALC256
TPMNuvoton NPCT750AABYX TPM2.0 (Optional)
EXPANSION SLOTPCIe 3.0 X1 slot / M.2 3042 / 3052 / 2242 / 2260 / 2280 B key (USB2.0, SATAIII, *PCIex1) *Not support M.2 M Key NVMe SSD / M.2 2230 E key (PCIe, USB 2.0) / Mini PCIe Full size (PCIe / USB / SATA)
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
HDMIUp to 4K (4096 x 2160) @60 Hz
DISPLAYPORTUp to 4K (4096 x 2160) @60 Hz
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option)Up to 4K (4096 x 2160) @60 Hz
REAR I/OUSB2 x USB 2.0 / 2 x USB 3.1 Gen 2
DISPLAY I/O1 x HDMI 1.4 / 1 x DisplayPort 1.4
AUDIO I/O1 x Mic-in / 1 x Line-out
LAN I/O2 x RJ-45
OTHERSDC-in Jack 8-24V (2.5 mm / ID, 5.5 mm / OD)
INTERNAL CONNECTORSSTORAGE1 x SATA power header / 2 x SATAIII (Multiplexed with M.2 and mSATA ports)
USB2 x USB 2.0
DISPLAY I/O1 x Backlight Connector / 1 x LVDS / 1 x eDP
AUDIO I/O1 x Stereo Speaker Header / 1 x Audio Header (Front Panel Mic-in & Line-out)
SERIAL PORT2 x RS232 / (Extra 1 x RS232/422/485 Header + 3 x RS232 Header for Option. Max. 6 x COM by Option)
PARALLEL PORT1 x Parallel Port Header (Optional) / 1 x MiAPI Header
FAN1 x 4-pin System Fan Header
POWER1 x 4-pin ATX Power Connector / 1 x 8~24V 4-pin Power Connector
OTHERS1 x CMOS Jumper / MiAPI: Programmable header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) with API library supported for Windows OS / 1 x panel power select header
POWER REQUIREMENTPOWER INPUTDC-in 8~24V (2.5 mm / ID, 5.5 mm / OD) / ATX 4-pin
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Quick Installation Guide
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from QtSystems am 18.01.2024 | | See all my comments

Works like a charm, Excellent quality! Cant say anything negative about it. Delivery was really quick, delivered to sweden without any hassle.

NVMe SSD support
Not support M.2 M Key NVMe SSD
