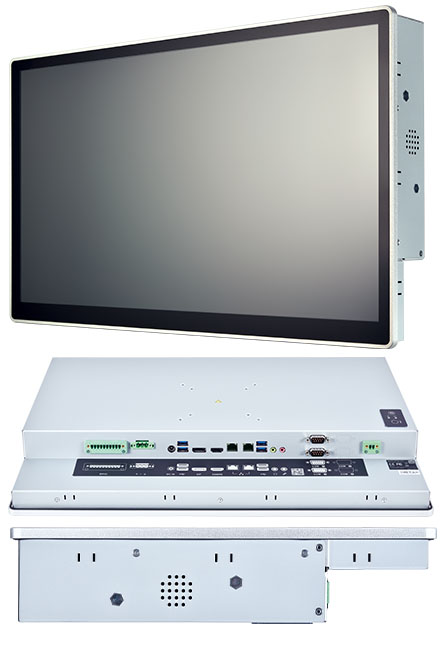

Mitac P210-10AI-N3350 [Intel N3350] 21.5" Panel PC (1920x1080, IP65 Front, Fanless)

Mitac P210-10AI-N3350 [Intel N3350] 21.5" Panel PC (1920x1080, IP65 Front, Fanless)
  • 1920x1080 Touchscreen !
  • Fanless ! IP65 Front !
  • 2x LAN, 4x COM !

P210-10AI is a 21 inch all in one panel pc system with Intel Apollo Lake Celeron based platform for power-efficiency and fanless condition. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

  • 21.5" TFT LCD with 30,000 hrs backlight lifetime
  • Front panel IP65-rated, fanless design
  • Inside Intel® Apollo Lake-M Processor




Share

1089.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
LCD
Display Type 21.5" TFT-LCD
Max. Resolution 1920 x 1080
Max. Colors 16.7M (8 bit/color)
Luminance 250 cd/m2
Viewing Angle 170°(H), 170°( V)
LED Backlight lifetime (Hours) 30,000
TOUCH SCREEN
Type P-CAP / resistive
Touch Screen True-flat 10 points / single point
SYSTEM
Processor Intel® Apollo Lake-M N3350 Processor
Chipset Intel® SoC integrated
System Memory DDR3L 1866 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC)
Ethernet 2 x Intel® I211-AT Giga LAN
I/O Port 1 x 3-pin Phoenix type terminal block DC input
2 x RS232
2 x RJ45
1 x 8bit GPIO terminal block
1 x DisplayPort 1.2
1 x 2-pin remote power on/off
1 x DC Jack
4 x USB 3.0
1 x HDMI 1.4
1 x Line-out
1 x Mic-in
Watchdog Timer 1~255 steps by software program
Storage Disk Drive SATA 2.5” HDD/SSD bay x 1
Expansion Slot 1 x M.2 2280 B key / 1 x M.2 2230 E key(PCIe / USB)
Stereo Speaker 2 x 2W
OS Support Windows 10 64bit
POWER REQUIREMENT
Power Input DC 8~24V
Power Adapter AC to DC, DC19V 65W adaptor
MECHANICAL
Mounting VESA 75/100 / Panel Mount
Dimension 508.3 x 308 x 68 mm
Weight 5.9kg
ENVIRONMENTAL
Operating Temperature -10°C ~ 50°C (14 ~ 122°F)
Storage Temperature -20 ~ 60°C (-4 ~140°F)
Storage Humidity 10% ~ 90% @40°C non-condensing
Vibration Resistance Operating Random vibration Test 5-500Hz, 0.3 Grms@with SSD, follow IEC 60068-2-64
Shock Resistance Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27
EMC CE / FCC Class B
Front Panel Protection IP65 Compliant
