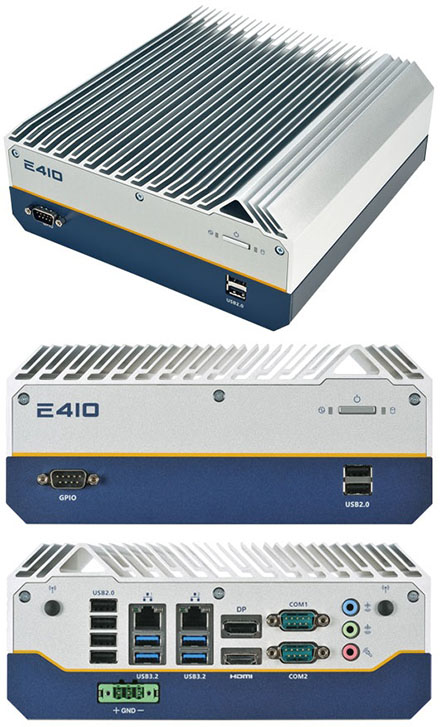

Mitac E410-13CMI-H420E-AC (10th Gen. Intel LGA1200) [FANLESS]

Mitac E410-13CMI-H420E-AC (10th Gen. Intel LGA1200) <b>[FANLESS]</b>
  • 10th Gen. Comet Lake !
  • Fanless !
  • 11x USB !
  • 12V DC !

  • 10th Gen. Comet Lake LGA Processor, up to i9 35W
  • Intel® H420E Chipset
  • 2 x DDR4 SO-DIMM up to 64GB
  • Support Dual Display for HDMI, DisplayPort
  • 1 x M.2 2280M-key, 1 x M.2 2230 E-key (CNVi), 1 x mPCIe Full size
  • 6 x USB2.0, 5 x USB3.0, 2 x COM, 8-bit GPIO




Share

549.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
CPU10th Gen Intel® Comet Lake LGA1200 Socket Processor 10core TDP Max 35W
CHIPSETIntel® H420E
SYSTEM MEMORYDDR4 2933/2666/2400MHz
/ 2 x 260-pin SO-DIMM
/ Max. 64 GB (Non-ECC)
GRAPHICSIntel® HD Graphics
DISPLAY INTERFACEDisplayPort 1.2 / HDMI 1.4
STORAGE SLOT1 x 2.5 HDD / SSD (Default w/ HDD Bracket) / 1 x M.2 M Key SSD / 1 x mSATA
ETHERNETIntel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
AUDIORealtek® ALC888S
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMNuvoton NPCT750AAAYX TPM2.0 (Optional)
EXPANSION SLOT1 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1)
/ 1 x M.2 2242 / 2280 M key (SATAIII)
/ 1 x M.2 2230 E key (PCIeX1, USB 2.0)
INDICATORPower Button / Power LED / HDD LED
FRONT I/O2 x USB 2.0
/ 8-bit GPIO (DB9 Connector)
REAR I/O2 x SMA hole with rubber cap
/ DC-in 12V in 3-pin terminal block connector
/ 2 x RS232 (1 support RS422/485)
/ 1 x HDMI 1.4
/ 1 x DisplayPort 1.2
/ 2 x RJ-45
/ 4 x USB 3.2 Gen1
/ 4 x USB 2.0
/ 1 x Mic-in
/ 1 x Line-out
/ 1 x Line-in
POWER INPUT12V DC Input w/ 3-pin Terminal Block Connectivity
POWER ADAPTER90W adapter / DC12V / 7.5A / AC to DC
THERMAL DESIGNFanless
MOUNTINGWallmount
DIMENSIONS (W X D X H)209mm x 209mm x 87mm
WEIGHT2.9 kg
MATERIALCold rolled steel and extruded aluminum front panel
OPERATING TEMPERATURE -20~50°C (4 ~ 122°F)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
VIBRATION RESISTANCE5Hz~500Hz / 2Grms / 3Axis (Non-operating)
SHOCK RESISTANCE120G, 2ms Duration (Non-operating)
CERTIFICATIONCE / FCC Class A
OS SUPPORTUbuntu 20.04 / Windows® 10 IoT 64bit (2019 LTSC / 2021 LTSC)
PACKAGE1 x Embedded System / US + EU Power Cord / 1 x 18 cm SATA Cable / 1 x Power Adapter (12V, 90W, AC Jack Type) / 1 x CPU Heat spreader / 1 x 3-pin terminal block to 6530 DC Jack cable
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
