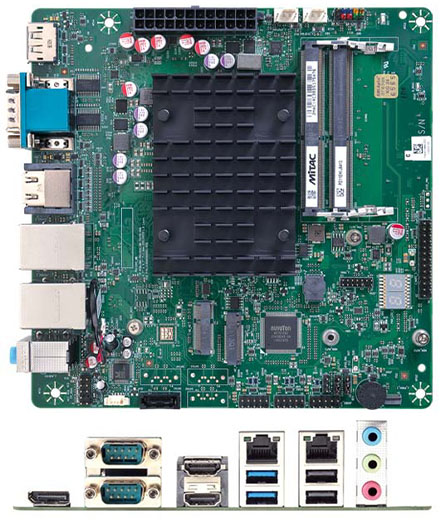

Mitac PD11EHI-J6413 Mini-iTX (Intel Celeron J6413 Elkhart Lake , ATX 24-pin)

Mitac PD11EHI-J6413 Mini-iTX (Intel Celeron J6413 Elkhart Lake , <b>ATX 24-pin</b>)
  • Intel Elkhart Lake !
  • Celeron J6413 !
  • Tripple Display !
  • PD11BI successor !

This board is produced by MITAC, the OEM producer of Intel D2500CC. This board is based on Intel D2500CC and available until at least 2025.

  • Intel Elkhart Lake Celeron J6413 BGA Processor (Up to 3.0GHz)
  • Support 2 x DDR4 SO-DIMM (Up to 32GB)
  • Support Triple Display for dual HDMI, and DisplayPort
  • Support 1 x M.2 2242/2280 M-Key (SATA, PCIe X2), 1 x M.2 2230 E-Key, and 1 x SATA III
  • 7 x USB2.0, 2 x USB3.2 Gen2, 2 x COM and 1 x MiAPI (configurable digital I/O)
  • ATX 24-pin power input



Share

209.95 EUR
incl. 19% VAT, plus shipping
In Stock (32 pcs)

Add to cart
FORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
PROCESSORIntel® Elkhart Lake Celeron J6413 Processor
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz
/ 2 x 260-pin SO-DIMM
/ Max. 32GB (Non-ECC)
GRAPHICSIntel® UHD Graphics
ETHERNET2 x Realtek® RTL8111H Giga LAN
AUDIORealtek® ALC888 Co-Lay ALC897
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMTPM Header / (support optional TPM module board NPCT750)
EXPANSION SLOTM.2 2242 / 2280 M key (SATAIII, *PCIe X2)
/ **support M.2 M Key NVMe SSD
/ 1 x M.2 2230 E key (PCIeX1, USB 2.0)
BIOSAMI BIOS
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
VGA-
DVI-
HDMIUp to 4K (4096 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2160) @60 Hz
LVDS-
eDP (Option)-
USB2 x USB 2.0
/ 2 x USB 3.2 Gen 2
DISPLAY I/O1 x DisplayPort 1.4 / 2 x HDMI 1.4
AUDIO I/O1 x Mic-in
/ 1 x Line-out / 1 x Line-in
LAN I/O2 x RJ-45
SERIAL PORT2 x RS232
PS/2 PORT-
OTHERS-
STORAGE1 x SATAIII / (4 x SATA III by customized sku)
USB5 x USB 2.0
DISPLAY I/O-
AUDIO I/O1 x Stereo Speaker Header
/ 1 x Audio Header (Front Panel Mic-in & Line-out)
SERIAL PORT-
PARALLEL PORT1 x MiAPI Header
GPIO-
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x 24-pin ATX Power Connector
/ 1 x AT / ATX Mode Select Jumper
OTHERS1 x CMOS Jumper
/ 1 x Buzzer
/ 1 x FIO header
POWER INPUTATX 24-pin
OPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / UKCA / FCC Class B
OS SUPPORTWindows® 11 64bit, / Windows® 10 IoT LTSC 64bit (LTSC 2021) / Ubuntu 22.04 / Linux (support by request)
PACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x Quick Installation Guide / 1 x I/O Bracket
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
