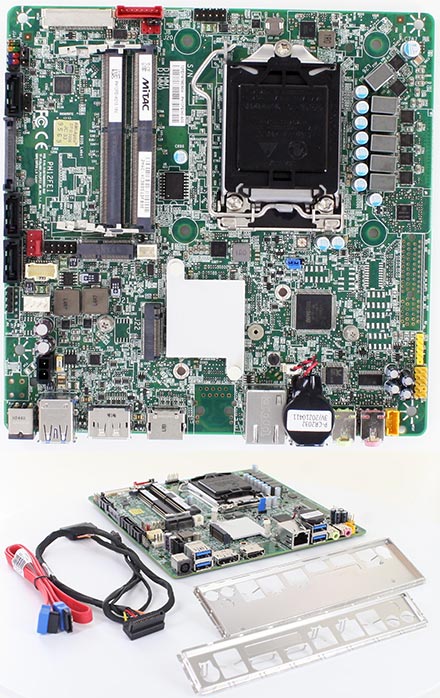

Special offer. Like PH12FEI-H310-19V, but only 1x LAN, without PCIe, without Serial/MAPI header.
Attention : M.2 slot is without function.
|PH12FEI (PH12FEI) Specifications|
|MECHANICAL||FORM FACTOR||Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm)|
|SYSTEM||PROCESSOR||9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 65W, Core i9 8-core TDP Max 35W|
|CHIPSET||Intel® H310 / Intel® Q370 (Support RAID 0 / 1 / 5)|
|SYSTEM MEMORY||DDR4 2666MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)|
|GRAPHICS||Intel® HD Graphics|
|ETHERNET||Intel® Giga LAN|
|I/O CHIPSET||Nuvoton NCT6116D|
|TPM||Nuvoton NPCT750AAAYX TPM2.0 (Optional)|
|BIOS||256 Mbit SPI|
|H/W MONITOR||Temperature Monitor / Voltage Monitor / Fan Monitor|
|WATCHDOG TIMER||1~255 steps by software program|
|SMART FAN CONTROL||CPU Fan / System Fan|
|HDMI||Up to 4K (4096 x 2160) @30 Hz|
|DISPLAYPORT||Up to 4K (4096 x 2304) @60 Hz|
|LVDS||Up to 1920 x 1200 @60 Hz|
|eDP (Option)||Up to 4K (4096 x 2304) @60 Hz|
|REAR I/O||USB||4 x USB 3.1 Gen 2 / 4 x USB 3.0 (H310)|
|DISPLAY I/O||1 x HDMI 1.4 / 1 x DisplayPort 1.2|
|AUDIO I/O||1 x Mic-in / 1 x Line-out|
|LAN I/O||1 x RJ-45|
|OTHERS||DC-in 19V (5.1 mm / ID, 7.4 mm / OD)|
|INTERNAL CONNECTORS||STORAGE||3 x SATAIII|
|USB||6 x USB 2.0 (Q370) / 5 x USB 2.0 (H310)|
|DISPLAY I/O||1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector|
|AUDIO I/O||1 x Audio Header (Front Panel Mic-in & Line-out)|
|FAN||1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header|
|POWER||1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper|
|OTHERS||1 x Chassis Intrusion / 1 x CMOS Jumper|
|POWER REQUIREMENT||POWER INPUT||DC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 2-pin 19V|
|ENVIRONMENTAL||OPERATING TEMPERATURE||0 ~ 60°C (32 ~140°F)|
|STORAGE TEMPERATURE||-20 ~ 80°C (-4 ~176°F)|
|OPERATING HUMIDITY||10% ~ 95% R/H (Non-condensing)|
|CERTIFICATION||CE / FCC Class B|
|OS||OS SUPPORT||Windows® 10 64-bit / Linux (support by request)|
|PACKING LIST||PACKAGE||1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Quick Installation Guide / 1 x ATX 4-pin to DIN 4-pin Cable (12v SKU only)|
