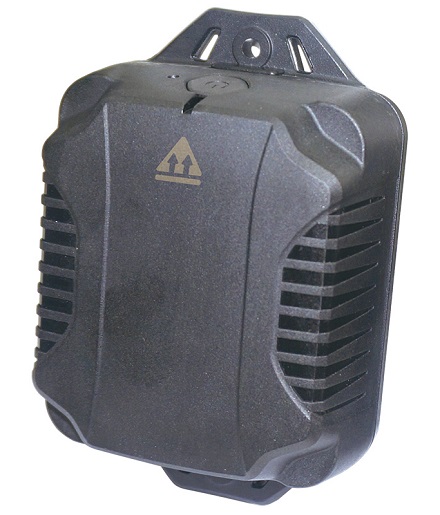

GlobalSat KT-520 GPS Tracker (LTE-M/Kineis)

GlobalSat KT-520 GPS Tracker (LTE-M/Kineis)
  • LTE-M communication !
  • Kineis satellite connectivity !
  • Motion-Sensor !

KT-520M is a GPS tracker with both LTE-M and Kineis satellite connectivity. This device will be used to locate vehicles/assets travelling between different locations, and transmit the location information via LTE-M, or Kineis satellite when there is no LTE-M coverage.

  • LTE-M communication
  • Kineis satellite connectivity
  • Built-in GNSS solution
  • Built-in 3-axis accelerometer for motion detection capability
  • The device is powered by a SAFT D size 17Ah non-rechargeable battery
  • Expected battery life of 5 years based 12 messages via LTE-M or 20 messages via Kineis per day
  • The device shall operate in ambient temperature between -20&# [more]

    Share

329.00 EUR
incl. 19% VAT, plus shipping
Available in 2 weeks
Add to cart

KT-520M is a GPS tracker with both LTE-M and Kineis satellite connectivity. This device will be used to locate vehicles/assets travelling between different locations, and transmit the location information via LTE-M, or Kineis satellite when there is no LTE-M coverage.

  • LTE-M communication
  • Kineis satellite connectivity
  • Built-in GNSS solution
  • Built-in 3-axis accelerometer for motion detection capability
  • The device is powered by a SAFT D size 17Ah non-rechargeable battery
  • Expected battery life of 5 years based 12 messages via LTE-M or 20 messages via Kineis per day
  • The device shall operate in ambient temperature between -20℃ and +55℃.
  • Maintenance-free design.
  • Configurable periodic report.
  • The device shall measure or estimate the remaining battery level.
  • It is possible to update the device firmware via LTE-M.
  • Weight : approx. 280g
  • Dimensions : 84.5 x 130.8 x 44 mm
  • Ingress Protection : IP69K



LTE-M Connectivity SIMCom LTE-M module
Kineis Connectivity Kineis KIM1 module
LTE-M Antenna Internal Antenna
Kineis Antenna Internal Antenna (400MHz)
Transmission Frequency Kineis @ 401MHz center frequency
Bandwidth 4 MHz
Output Power 1000mW
BLE Built-in BLE chipset
GNSS High sensitivity GNSS solution
G-Sensor 3-axis accelerometer
Battery SAFT LS-33600 D size 17Ah non-rechargeable battery
Operation Temperature -20℃ ~ +55℃
Button 1 Button
LED 1 RGB LED
Weight Estimated Weight 270g
Dimensions W 84.5 x L 130.8 x D 44.0 mm
Ingress Protection IP69K
Impact Protection IK10
Certification  FCC (TBC)
 CE, EMC, Safety (TBC)
 WEEE/RoHS (TBC)
 IP69K/IK10 (TBC)
Data sheet Download (PDF)
Data sheet Print view
