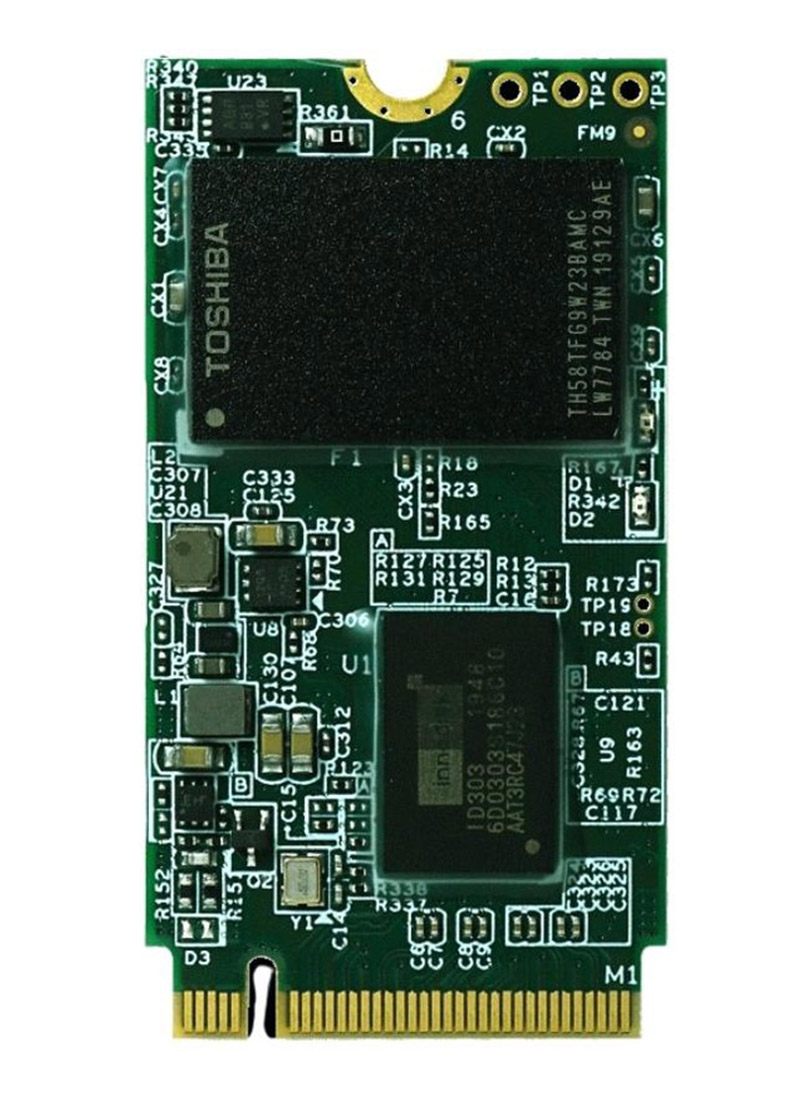

Innodisk DEM24-C12DD1KCAQF (512GB NVMe M.2 SSD, Industrial, -40 to 85°C)

Innodisk DEM24-C12DD1KCAQF (512GB NVMe M.2 SSD, Industrial, <b>-40 to 85°C</b>)
  • -40 to 85°C !
  • Instustrial !
  • 512GB !
  • NVME !

Innodisk M.2 (P42) 3TE6 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P42) 3TE6 supports PCIe Gen III x 4 and it is compliant with NVMe 1.3 providing excellent top and also outstanding sustained performance. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-End data path protection that secures the data transmission between host system and NAND Flash. In addition, with a customized embedded AES-256 bit engine, your data can be further secured.

  • PCIe Gen. III x4, NVMe 1.3
  • DRAM-less Solution
  • Less Controller Heat
  • Anti-Vibration mechanical design
    • [more]

    Share

209.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Add to cart

SSD (M.2 NVME):

Innodisk M.2 (P42) 3TE6 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P42) 3TE6 supports PCIe Gen III x 4 and it is compliant with NVMe 1.3 providing excellent top and also outstanding sustained performance. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-End data path protection that secures the data transmission between host system and NAND Flash. In addition, with a customized embedded AES-256 bit engine, your data can be further secured.

  • PCIe Gen. III x4, NVMe 1.3
  • DRAM-less Solution
  • Less Controller Heat
  • Anti-Vibration mechanical design
  • Hybrid Write Mode
  • LDPC ECC engine supported.
  • iPowerGuard Protection


Schnittstelle PCIe Gen. III x4
Flash-Typ 3D TLC
P/E-Zyklus 3.000
Kapazität 64GB~1TB
Max. Kanäle 4
Sequenzielles Lesen/Schreiben (MB/s, max) 2.000/1.850
Nachhaltiges sequenzielles Schreiben (MB/s, max) 650
Max. Stromverbrauch (RMS) 3,5W
Temperatursensor √
Externer DRAM-Puffer NA
H/W-Schreibschutz NA
iCell NA
Abmessungen (BxLxH) 22,0 x 42,0 x 1,35 mm (Oberseite ohne wärmeableitende Kupferfolie)
22,0 x 42,0 x 1,95 mm (Oberseite mit wärmeableitender Kupferfolie. Standardeinstellung für industrielle PNs.)
Umgebung Vibration: 20G @7~2000Hz
Schock: 1500G @ 0,5ms
Betriebstemperatur: -40°C ~ +85°C
MTBF: 3 Millionen Stunden
Data sheet Download (PDF)
Data sheet Print view
