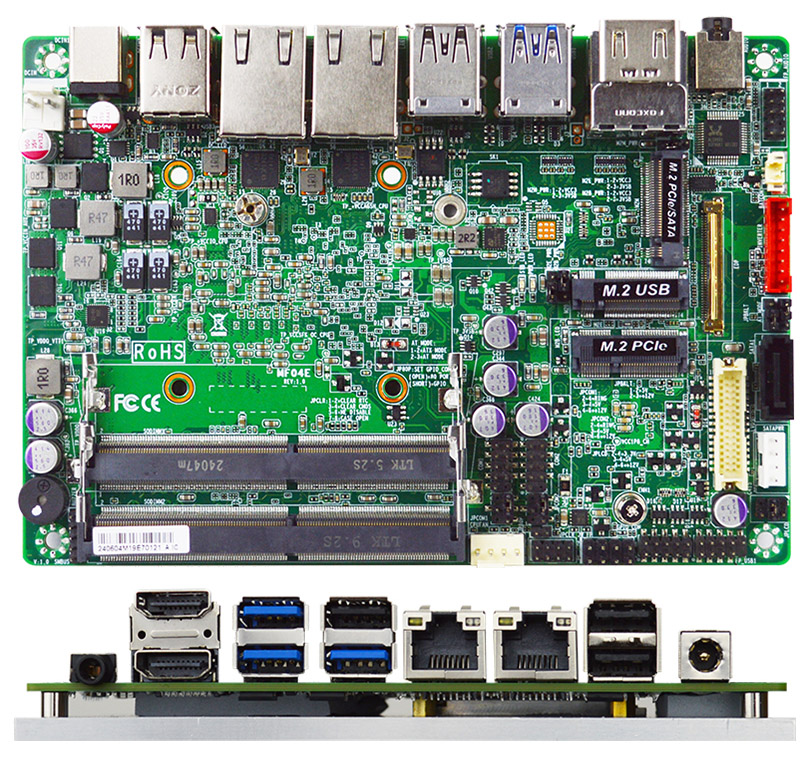

Jetway MF04E00 3,5" SBC (Intel Celeron J6412, 2x LAN, 4x USB) [14-24V Power Input]

Jetway MF04E00 3,5" SBC (Intel Celeron J6412, 2x LAN, 4x USB) <b>[14-24V Power Input]</b>
  • Intel SoC !
  • Tripple Display !
  • 12-24V Input !
  • 3,5" SBC !

  • Powered by Intel® J6412 SoC Processor (Elkhart Lake, TDP 10W)
  • Dual DDR4 3200MHz SO-DIMM: Maximize multitasking performance
  • Dual 2.5GbE LAN: High-speed networking connection
  • Triple Display Support: 2 x HDMI 2.0b, 1 x eDP/LVDS (either eDP or LVDS) for versatile multi-display setups
  • Comprehensive I/O: 2 x COM, 3 x USB 3.1 Gen 2, 5 x USB 2.0 ports
  • Flexible Expansion: 1 x M.2 E-key 2230, 1 x M.2 B-key 3042 w/SIM slot
  • Storage Options: 1 x SATA3, Optional 64GB eMMC, 1 x M.2 M-key 2242/2280
  • Reliable DC Input: 12V–24V range, ideal for industrial environments


Share

319.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
SYSTEM
MB FORM FACTOR3.5"
CPUOnboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W)
CHIPSETIntel® SoC
MEMORY2 x DDR4 3200MHz, Dual Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
DIMENSION (W X D)148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~24V
POWER ON MODEAT / ATX (Default) Mode
CONNECTORDC Jack
Internal 2-pin Header
DISPLAY
GPUIntel® UHD Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP)
eDP1 x eDP (Max Resolution: 4096 x 2160@60Hz)
HDMI2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Combo Audio Jack for Line-Out / Mic-In
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USBInternal Header for 2 x USB 2.0
3 x USB 3.1
3 x USB 2.0
SERIAL PORT
COMInternal Header for 1 x RS-232/422/485
Internal Header for 1 x RS-232
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x 4-pin Connector for CPU Fan (PWM Mode)
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
eMMCOnboard 64GB eMMC 5.1 (optional)
EXPANSION
M.21 x M-Key 2242/2280 (SATA III/PCIe 3.0 x2) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
1 x B-Key 3042 (USB2.0/USB3.1)
SIM1 x SIM Card Slot
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
Data sheet Download (PDF)
