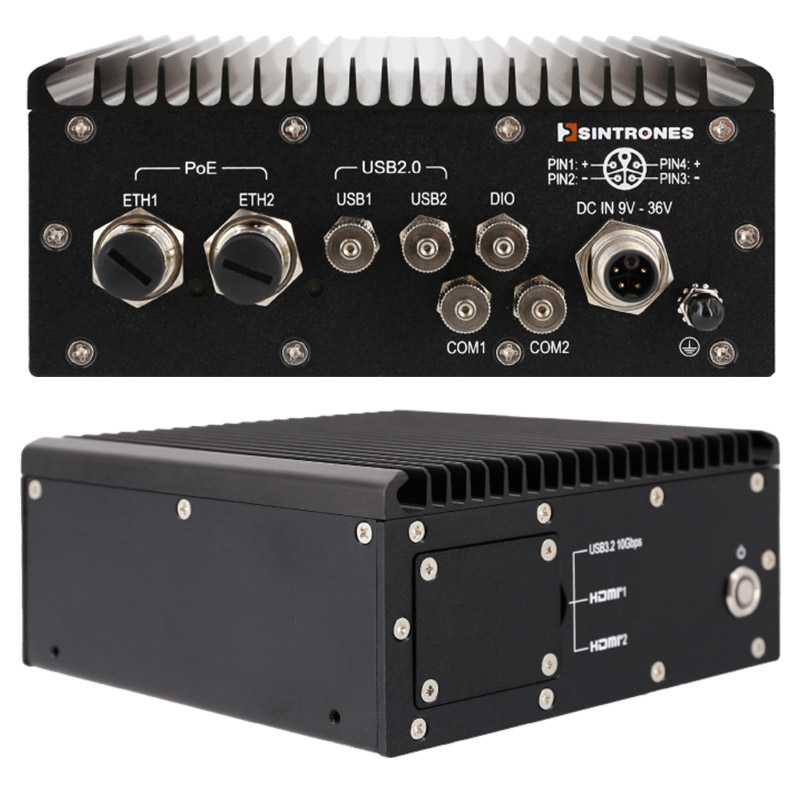

Sintrones SBOX-2624P-IP66 Waterproof Computer (AMD Ryzen R2312, 2x HDMI, 2x GbE PoE, DC-IN 9-36V)

Sintrones SBOX-2624P-IP66 Waterproof Computer (AMD Ryzen R2312, 2x HDMI, 2x GbE PoE, DC-IN 9-36V)
  • SBOX-2624P-IP66 !
  • Waterproof !
  • 2x COM !
  • EN 50155 Embedded !

  • AMD Ryzen™ Embedded R2312 2C/4T Processor
  • 2 x HDMI® Supports Resolution Specified in HDMI 2.0b
  • 2 x GbE w/ PoE
  • 2 x COM
  • 1 x M.2 2280 Key M Supports NVMe and SATA
  • 1 x M.2 3042/52 Key B Supports USB 3.2
  • 1 x M.2 2230 Key E Supports PCIe and USB2.0
  • 9V – 36V DC Input
  • IP66 Enclosure for Harsh Environment
  • EN 50155 Certified


Share

1289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

Prozessor / Graphics

AMD Ryzen™ Embedded R2312 2C/4T Processor
CPU Built-in Graphics AMD Radeon™ Graphics

Memory

1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)



Security

1 x TPM 2.0
System reset 1 ~ 255 sec. or min. settings in BIOS

Interface

2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b/o IP66

2 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via M12 X Code
* Share with 1GbE bandwidth; Power budget: 30W

USB: 2 x USB 3.2 Gen 2 (10Gbps) w/o IP66 / 2 x USB 2.0 w/ M8 A Code

3 x DI (9-36VDC), 4 x DO (5V, 100mA) w/ M8 A Code

2 x RS-232/422/485 w/ M8 A Code

INTERNAL EXPANSION

  • • 1 x M.2 3042/52 Key B supports USB 3.2 for WWAN w/ Dual SIM
    • 1 x M.2 2230 Key E supports PCIe and USB 2.0 for Wi-Fi/BT



STORAGE (Internal)

  • 1 x M.2 2280 Key M supports NVMe or SATA SSD

Operating System / SDK

Windows 10 IoT Enterprise 64bit LTSC
Windows 11 IoT Enterprise
Ubuntu 20.04 LTS 64bit
Ubuntu 22.04 LTS 64bit

Operating Temp.

-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)



Storage Temp.

-40 ~ 80°C (-40°F ~ 176°F)

Relative Humidity 10 ~ 90% @ 40°C (non-condensing)
Certification / Standard CE, FCC Class A, UKCA, EN 50155
Power Input DC-IN 9 – 36V Input (Nominal Power Input 12V or 24V)
Over voltage and reverse polarity protection
Mechanical

Aluminum Alloy with Fanless Design
Wall-mount

2,00kg
150 x 150 x 66 mm
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
