CTF400 - VGA 7" TFT - Touchscreen USB - Video - Autodimmer - Audio

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTF400 - VGA 7" TFT - Touchscreen USB - Video -  Autodimmer - Audio
3D 360° View
  • Auto-Dimmer !
  • Audio speakers !
  • Rear CAM feature !
  • Auto-PowerOn !

The new CTF-400 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-400 can be used with any PC/MAC with VGA- and USB port.

Driver
[more]

Share

Front
Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1024x768
Native resolution 800x480
Dot resolution 2400x480
Brightness 400
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 178 x 128 x 28 mm
Visible area 154 x 93 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
yes Headrest mount
yes TS pencil
no Earphone
yes Adjustable video aspect
yes Mirrorable video
yes Reverse camera input

The new CTF-400 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-400 can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Spezifications
Screen size 7" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1024x768
Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 178x128x28 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 400 cd/m²
Contrast 350:1
Vibration IEC68-2-6
Operating Temperature -30° to 85°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Auto Power On/Off
Auto-Dimmer
VESA mounting holes (75mm) + metal rail
Automatic switching to rear camera (by signal detection on AV3)

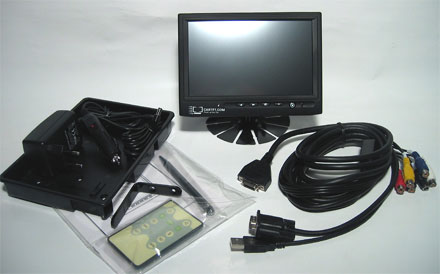

What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket + headrest mounting shroud
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet Print view
Dimensions (PDF) Download (PDF)
800x480 Driver (Windows 7) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 29 ratings
5 von 5 Sternen from privat@dvstructura.de am 05.07.2012 |

Der Monitor kann einfach in Betrieb genommen werden und funktioniert ohne komplizierte Einrichtung. Das Bild ist gut, nur die Hintergrundbeleuchtung ist etwas ungleichmäßig, aber das fällt kaum auf. Das im Lieferumfang enthalten Anschlusskabel ist recht dick, aber ausreichend lang und bietet für alle Eventualitäten einen entsprechenden Eingang. CD mit Treibern und Demosoftware ist auch dabei! Insgesamt ein TOP-Produkt!!

5 von 5 Sternen from mustang86m am 26.03.2012 | See all my comments

gugux also diesen monitor habe ich mir 3 mal gekauft und nur mit einem bislang probleme gehabt zurückgeschickt und fehler wurde ohne meckern behoben bin voll zufrieden

3 von 5 Sternen from Freaky Freak am 23.07.2010 |

Sehr gutes Display mit guter Qualität
Ich würde dass display aber direkt an 12V klemmen da dass display bei mir jedes mal beim einschalten einen hellen lichtblitz erzeugte
sonst aber top Produkt

5 von 5 Sternen from Baroccoch am 10.12.2009 | See all my comments

Sehr schnelle Lieferung!!! Super TFT, auch die anschlüsse sind sehr einfach und praktisch. der standfus ist sehr einfach zu befestigen dank dem kleber und den vielen rillen für schrauben. die blid qalität überzeugt sehr gut.

3 von 5 Sternen from Mumpits am 07.12.2009 | See all my comments

habe ihn mit der Einbauschale in die Mittenkonsole meines Sciroccos eingebaut. Er macht sich sehr gut, die Qualität ist sehr gut und der Touchscreen reagiert präzise.
Ich würde Ihn auf jeden Fall wieder kaufen, das Preis Leistungs Verhältnis stimmt!
