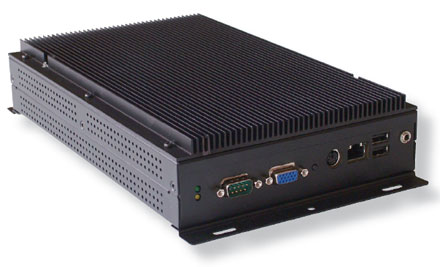

CTFDVR (Mobile DVR, Fanless) [Availability on request]

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTFDVR (Mobile DVR, Fanless) [<b>Availability on request</b>]
  • Mobile DVR
  • 8-36VDC Input
  • Fanless !
  • 4x RS232

This fanless Car-PC is designed for digital video recording in eg. police-, ambulance- or taxi-cars.

Features :
- 4 Channel Video-input Maximum 15fps, Total 60fps
  (also available with 8 channels Video-input Maximum 7.5fps, Total 60fps
- Wide Range DC Power Input with Smart Control Function (8-36V)
- Four RS-232 Serial Ports for GPS/GPRS Module
- Fanless Design within Sealed Construction
- Embedded Linux Reference Design
- Customizable Video GUI with Dedicated Toolkit
- Anti-vibration, Anti-shock Design to Ensure Maximum Reliability

Specifications :


Share

Recording Medium CompactFlash Type II
Display Time, date, vehicle speed, latitude, longitude, 24 hours clock format
Video Input 4/8 input (D-SUB), 1V pp/75 ohm
Video Output 1 x VGA port
Image Resolution NTSC: 320 x 240, 720 x 480; PAL: 384 x 288, 768 x 576
Video Compression MPEG-4
Frame Rate 60fps (Max.)
Audio Input 1/2 input (D-SUB), synchronized with video
Audio Output Line out
Sampling Rate PCM 16 bit 44.1KHz; 22.05KHz; 11.025KHz
Alarm Input 4 alarm inputs
Alarm Output 4 alarm outputs
Display Rate Real time
Recording Modes Continuous, time-lapse, event recording
Playback Search by alarm, date, time, camera
Video Loss Detection Yes
Event Log Auto-log video loss, video recover, motion etc.
User Interface Menu driven
Timer Built-in real time clock
Title Alphanumeric Characters
USB Port 2 x USB ports can be connected to PC
Archive USB thumb drive
Serial Port 4 x RS-232 ports

Power supply
Power Consumption 60W (Max.)
Power Source DC 8V ~ 36V

Mechanical & Environmental
Operating Temp. -25ºC ~ 55ºC (-13 ºF ~ 131ºF) (Fanless
Relative Humidity 10% ~ 95% @40ºC (non-condensing)
Dimension (W x D x H) 255 x 200 x 60 mm (10.04" x 7.87" x 2.36")
Weight 2.2kg (4.84 lb)

PC Details
Mainboard 3.5" embedded board with Celeron 733MHz CPU
Memory 256 MB RAM
Compact Flash 256 MB included
