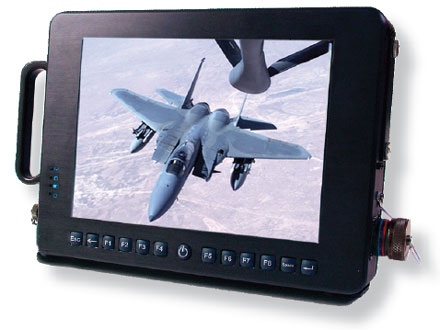

CTFMILPC (10.4" Military Touchscreen TabletPC, 1.1Ghz, 256MB RAM, 4GB Flash HDD) [Availability on request]

CTFMILPC (10.4" Military Touchscreen TabletPC, 1.1Ghz, 256MB RAM, 4GB Flash HDD) [<b>Availability on request</b>]
  • Ruggedized !
  • IP 68 !
  • Mil-Std-810F !

Features :
- Low Reflective 10.4" TFT LCD w/Resistive Touch Screen
- Mil-Std-810F Anti-Shock & Vibration
- Rain & Dust Protection (IP68 Compliant)
- Wide Temp. (-40 ~ 60°C) Operation
- Multi-Connectivity (Optional WLAN, and/or Bluetooth)
- Multi-Expansion (Built-in PCMCIA, CompactFlash, and Mini PCI Socket)
- AC (Default) or DC (9-36V or 48V) Power Input
- 4 or 8 x RS-422 Ports Expansion Module
- High Brightness 1,000 cd/m² Sunlight Readable LCD Panel (Optional)

Specifications :


CPU Intel Pentium M LV 1.1GHz (FSB400MHz) CPU soldered
Cache 1MB L2 cache built-in Pentium M 1.1GHz CPU
Memory 256MB DDR RAM soldered + 200-pin DDR DIMM socket(up to 1GB), upgradable up to 1.25GB totally
Chipset Intel 915GM + ICH6M
Audio Controller ALC202A AC97 Codec
Ethernet 1 x Realtek RTL8100 10/100 base-T Fast LAN
Flash Disk 1 x 1.8" IDE 4GB flash disk built-in (Optional to 16GB)
I/O Ports Through optional cable cit: 2 x COM (RS-232C) ports, 1 x VGA (DB-15) port, 1 x Audio (Speaker-out), 1 x MIC-in, 1 x LAN (Female RJ-45) port, 2 x USB 2.0 ports
I/O Connector 1 x D38999/26WE35PN (55-pin) Mil-Std I/O connector
I/O Dust Cover Mil-Std D38999/33W17R
Expansion Bus 1) 1 x PCMCIA Card-Bus (Type III) socket
2) 1 x Mini PCI socket
3) 1 x CompactFlash socket
Function Key 12 x Function Keys (8 x Programmable, F1~ F8)
LCD Display
Size/Type 10.4" TFT LCD
Max. Resolution 1024 x 768, XGA
Pixel Pitch (mm) 0.264(H) x 0.264(V)
Contrast Ratio 600 : 1
Max. Colors 266,144 colors
Luminance 400 cd/m² (Optional to 1,000 cd/m²)
Viewing Angle (CR>=10) 80º~80º (H); 65º~65º (V)
Backlight MTBF 50,000 hours (20 ~ 35°C)
Touch Screen
Type Analog Resistive (4-wire)
Light Transmission 80%
Controller Interface USB Interface
Power Adapter
AC Input 100 ~ 240V 1.7A, 50 ~ 60Hz
DC Output 60W (Max.), DC 20V@3.25A
Adapter Connector Mil-Std D38999 (MS3112E 8-4P
Battery 4-cells Li-battery pack built-in, 19V@3,600mAh, 3 hours battery life
Mechanical & Environmental
Operating Temp. -40°C to 60°C (-40°F to 140°F)
Storage Temp. -40°C to 70°C (-40°F to 158°F)
Dimension 340.3 x 225 x 50.75 mm (13.4" x 8.9" x 2")
Net Weight 3.5kg with battery (7.7lb)
IP Rating IP-68 Rain & Dust Compliant
Shock 40G (11ms, 3 shocks/direction, 6 directions)
Vibration 6G (20 ~ 2000Hz, 3 times direction, 3 axes)
(Mil-Std-810F, Method 514.4, Procedure 1
Mil-Std-810F, Method 514.4 & 512.2, Procedure 1)
Case Material 6061-T6 Aluminum Alloy
Case Finish Hard Anodizing per Mil-A-8625D
Accessoiry (optional) - I/O Cable Kit ncluding 2 x COM (RS-232C) ports, 1 x VGA (DB-15) port, 1 x Audio (Speaker-out), 1 x MIC-in, 1 x LAN (Female RJ-45) port, 2 x USB 2.0 ports
  - MIL-STD 55-pin connector
  - DC/DC Power Adapter (DC9-36V input, 60W)
  - AC/DC Power Adapter (AC100-240V input, 60W)
  - Transportation Hard Case
  - USB interface Bluetooth module
  - Mini PCI WLAN module (IEEE 802.11b/g
  - DC9-36V or DC48V power input
  - 4 or 8 x RS-422 ports expansion module
Data sheet Download (PDF)
Data sheet Print view
