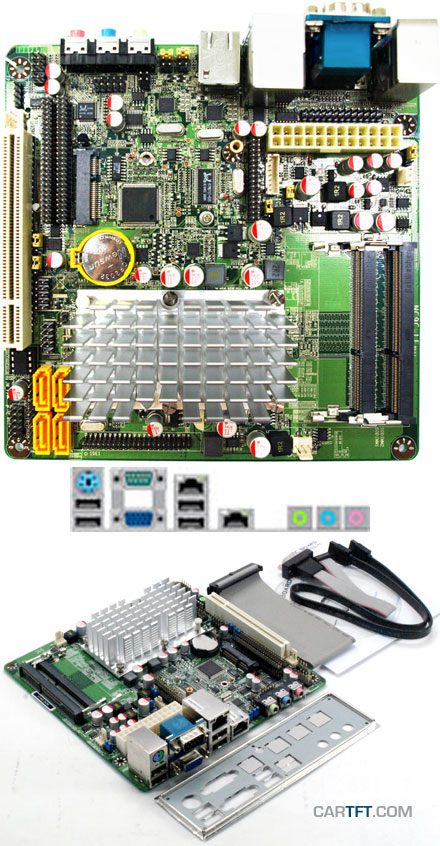

Jetway JNC9C-550-L (with integrated Atom 2x1.5Ghz CPU, 2x LAN, Mini-PCIe) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNC9C-550-L (with integrated Atom 2x1.5Ghz CPU, 2x LAN, Mini-PCIe) [<b>FANLESS</b>]
3D 360° View
  • Fanless !
  • Mini-PCI Express !
  • 2x Gigabit LAN !
  • 8.5W TDP CPU !

The Jetway JNC9C-550-L is equipped with Intel Atom N550 CPU (2x1.5Ghz, 8.5W TDP), 2x Gigabit LAN and Mini-PCI-E slot. Therefore it is a perfect platform for appliance applications like firewalls or routers.

It gets even more attractive when adding a 3xLAN daughter board which enables you to build Multi-WAN routers with 5x Gigabit LAN connectors. When you also add a WLAN Mini-PCI-E card you can use the system as an access point.



Note for expansion-boards :
The mainboard is compatible with all expansion-boards, except :
DVI/HDMI, 2xLAN/1xVGA


Share

CPU Intel Atom N550 2x 1.5Ghz
Graphics Intel GMA 3150
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio VIA VT1705 HD
Base Intel ITX
USB 8x USB 2.0
Firewire --
IDE/SATA 4x SATA (RAID), 1x IDE
LAN 2x 10/100/1000
Parallel 1x
Serial 1x
no TV-Out
yes PCI
yes Mini-PCI
yes IDE
no DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
CPU INTEL®Atom N550 CPU(45nm,512K Cache, 2x1.50 GHz, 667 MHz FSB)
Chipset - INTEL®Atom N550 + NM10 chipset
- Build-in INTEL®GMA 3150 Graphics Core (DVMT max. 384MB)
- Front Side Bus 667MHz
Memory 2 * SO-DIMM Sockets for un-buffered Single Channel DDR3 1333 SDRAM up to 2 GB
Expansion Slots - 1x PCI
- 1x Jetway Daughter Board
- 1x Mini-PCI Express
Storage - 4* Serial ATA2 3Gb/s connectors (support RAID 0,1,JBOD)
- 1* Ultra DMA 100 / 66 IDE connector
Audio VIA VT1705 HD Audio Code with 6-Channel
Ethernet LAN 2x Realtek RTL8111E PCI-E Gigabit Ethernet LAN
USB Embedded 7* USB 2.0/1.1
Special Features Support ACPI S3
Support CPU Smart FAN
Support DC FAN
Rear Panel I / O - 4* USB 2.0/1.1 ports
- 1 * PS/2 Keyboard connector
- 2* RJ-45 port
- 3 * Audio I/O ports ( Line-in, mic and line-out )
- 1 * VGA port
- 1 * COM port
Internal I / O - 3* USB 2.0/1.1 ports
- CPU / Chassis Fan connectors;
- 1 * COM header (COM2 for RS-232/422/485)
- 1 * Audio-IN header
- 1 * Parallel header
- 1 * 8bit GPIO
BIOS Award 8MB SPI Flash ROM
Form Factor Mini ITX Form Factor(17cmx17cm)
Scope of supply - Jetway JNC9C-550-LF ITX mainboard
- DriverCD
- Manual
- 1x COM cable
- 1x IDE cable
- 1x SATA cable
- ATX I/O shield
Data sheet Download (PDF)
Data sheet Print view
Specifications [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 9 ratings
5 von 5 Sternen from Raininator am 27.02.2012 | | See all my comments

Aufgrund der 2 LAN Adapter als Firewall im Einsatz, bin bis dato absolut zufrieden, kann ich dher nur weiter empfehlen.

4 von 5 Sternen from Bertrand am 06.09.2011 | | See all my comments

Tolles Board, wird ohne Kühlung wie ein Vorschreiber beschreibt recht warm. Ich habe die Astrao Firewall darauf Installiert und in Betrieb. Zusammen mit dem Tochterboard ein schönes Bundle..

5 von 5 Sternen from thilo@ognibeni.info am 17.07.2011 |

Hervorragendes Mainboard, dass dank den zwei Netzwerk- und vier SATA-Anschlüssen bestens als stromsparenden Server-Board eingesetzt werden kann. Beim prozessortechnisch nicht sonderlich anspruchsvollen Serverbetrieb wird die passiv gekühlte CPU im gut belüfteten Gehäuse auch bei Dauerbetrieb maximal handwarm.

4 von 5 Sternen from methusalix am 18.05.2011 | | See all my comments

klasse Board, läuft bei mir als Basis für Astaro.

5 von 5 Sternen from halieus am 16.05.2011 | | See all my comments

Top Board. Verwende allerding einen Lüfter zur Kühlung der CPU. Komme so von ca. 61/65 Grad auf 39/42 Grad herunter. Ist mir persönlich lieber. Die Leistung reicht gut, um einen kleinen Home-Router für's Heimnetz mit Internetanschluss unter Linux aufzusetzen - und auch ein paar Server laufen zu lassen. Erwartungen wurden voll und ganz erfüllt.
