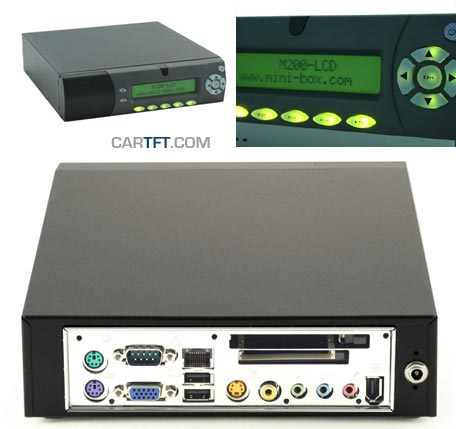

M200-LCD Enclosure

- Up to two 2.5" drives
- Intelligent USB display with 20 columns and 2 rows and 8x5 dots character size
- Bootable (IDE) Compact-Flash
- PWR button and LED
- Works with any picoPSU (not included)
- Size 20cm (w) x 5.4cm x 24cm


The M200-LCD-Enclosure is a versatile mini-ITX enclsosure designed for embedded applications where CDROM drives are not required. The M200-LCD-Enclosure fits any type of mini-ITX board with standard back I/O shield. Not recommanded for EPIA 800, EPIA 5000 and EPIA CN series because of the different USB header pinout. The M200-LCD-Enclsoure will work with up to two IDE or SATA 2.5" disk drives (disk drive cable adapter not includ
[more]

Share

49.95 EUR
incl. 19% VAT, plus shipping
In Stock (84 pcs)

5 von 5 Sternen
6 ratings
Add to cart

- Up to two 2.5" drives
- Intelligent USB display with 20 columns and 2 rows and 8x5 dots character size
- Bootable (IDE) Compact-Flash
- PWR button and LED
- Works with any picoPSU (not included)
- Size 20cm (w) x 5.4cm x 24cm


The M200-LCD-Enclosure is a versatile mini-ITX enclsosure designed for embedded applications where CDROM drives are not required. The M200-LCD-Enclosure fits any type of mini-ITX board with standard back I/O shield. Not recommanded for EPIA 800, EPIA 5000 and EPIA CN series because of the different USB header pinout. The M200-LCD-Enclsoure will work with up to two IDE or SATA 2.5" disk drives (disk drive cable adapter not included).

The M200-LCD-Enclsosure is compatible with an entire range of DC-DC picoPSU power supplies, allowing system designers to pick the right PSU for their application (picoPSU not included in this assembly)

The M200-LCD-Enclosure has a front door for extra ESB ports and Bootable Compact Flash adapter (included in this assebly), making this enclosure perfect for systems that boot from flash (Compact Flash).

The M200-LCD-Enclosure comes in a white OEM box that can be re-branded. The enclosure has a small area for OEM logo, allowing system integrator to re-brand the unit, making this enclosure the perfect candidate for embedded applications.

Note :With Intel D945GCLF mainboard you can not use the LCD module because the USB connection cable is too short.

Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 6 ratings
5 von 5 Sternen from zipou am 28.06.2011 | | See all my comments

Very Nice Stuff. I had some trouble install the LCD with Ubuntu 10.04 out of the box but it finally went OK with lcd4linux. The box is really good.

4 von 5 Sternen from chark am 22.03.2010 | | See all my comments

Nice case!
LCD-driver for XP is hard or impossible to find so that you could actually make some use for it. In Vista / 7 i believe you will make a good use for the sideshow (LCD)...
If you remove the front USB and CF-reader, you will be able to fit in a M2-ATX PSU. You need to make new holes for HD if you use for example an Intel DG45FC board or a similar. A lower processor fan is also needed.

4 von 5 Sternen from pg89 am 23.09.2009 | See all my comments

Optisch auf jeden fall mein Favorit..die Bedienknöpfe an der vorderseite funktionieren aber nicht mit jedem Mainboard (logisch^^) und was mich vor allem stört: viel platz ist nicht. Netzteile kommen nur PicoPSU in frage oder man muss in den deckel Löcher bohren zum befestigen. Aber auch dann wird alles sehr eng innen drinn...deswegen nur 4 sterne.

3 von 5 Sternen from teknoraver am 16.10.2008 | | See all my comments

Very nice product.
The LCD is quite bright and there is space in it for two 2.5 HDDs, by installing it on the case ceil.
It's not written in the description but this case includes a fan mounted on the side, which is quite silent.
The only bad thing is that it isn't much hard, try to assembly/disassembly the minimum needed, because the cover components are plastic.

4 von 5 Sternen from Birne am 07.11.2007 | See all my comments
