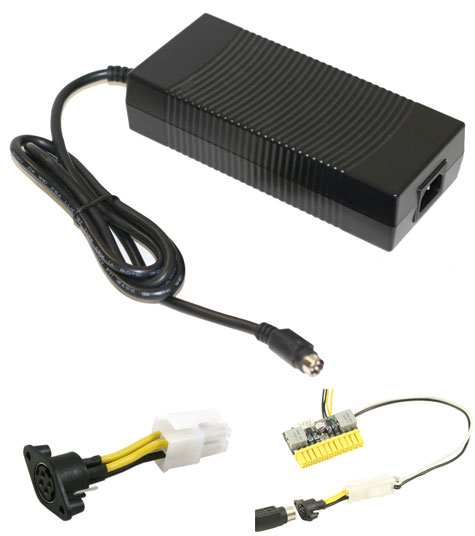

AC Power adapter (12V, 16A, 192W) with PicoPSU-adapter cable Mini-Fit-JR

AC Power adapter (12V, 16A, 192W) with PicoPSU-adapter cable Mini-Fit-JR
  • 100/240V
  • 192W !
  • Model: STD-12160
  • FANLESS !

For connecting PicoPSU-150-XT/PicoPSU-160-XT to the standard 230V house power net.
192W max.


- Dimensions: 183 x 81 x 42 mm
- Connector : 4 pin Mini DIN
- Efficiency : >=87%
- CEC, Energy Star Level V & ErP Stage 2 & NRCan
- No Load Power Consumption Less Than 0.5W


PicoPSU-adapter cable 4 pin Mini DIN to Mini-Fit-JR included.
Power cord (cold devices connector) not included.



Share

69.95 EUR
incl. 19% VAT, plus shipping
In Stock (451 pcs)

5 von 5 Sternen
1 ratings
Add to cart
Model Output Voltage Output Current Watt
STD-12160 12.0V 16.0A 192W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 2.8A Max.
Protection Internal Primary Current Fuse
Configuration IEC60320 / C14
Output
Load Regulation ± 5% (Typical)
Ripple 3~5% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Holdup Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/Over Temperature Protection
DC Cord UL2464 / 16AWG
Ferrite Core No (Optional)
Safety Approvals
  CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC / RCM
Electrical
Topology LLC
Dielectric Withstand 3,000 VAC Primary – Secondary
Leakage Current 3.5mA @ 3 Pin
Efficiency Engergy Star Level V, ErP Stage 2 & NRCan Certified
EMI Conduction&Radiation; Compliance to EN55022 Class B
Harmonic Current Compliance to EN61000-3-2,3
EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity  Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension L183 x W81 x H42 (mm)
Weight 850g (Ref.)
Data sheet Download (PDF)
Data sheet Print view
4pol Mini DIN Connector Pinout Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from magnus@vikstrom.no am 15.06.2021 |

Works well with my 160W pico psu and streacom db4 case using the bundled adapter. One improvement would have been to also include some type of adapter to attach the connector to different types of cases. This could be some type of mount with adjustable screw hole widths. On the DB4 i removed the old mount and just have the cable running through the hole without any screws (used some tape)
