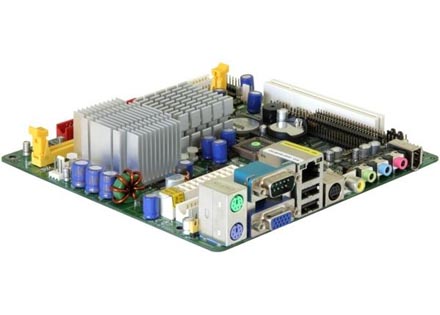

Jetway J7F2WE-EDEN12G (Alternative for VIA EN12000) [Fanless]
PRODUCT IS CURRENTLY NOT AVAILABLE !![Jetway J7F2WE-EDEN12G (Alternative for VIA EN12000) [Fanless]](https://minipc.de/carpc/image_db/J7F2WE-EDEN12G.jpg)
- DDR-II !
- FANLESS !
- 1.2 Ghz !
- 6W !
This board is based on the latest VIA C7 architecture.
| CPU | VIA EDEN 1.2Ghz |
| Graphics | S3 UniChrome Pro 3D 128bit |
| Formfactor | ITX (17x17cm) |
| RAM | 1x DDR-II 400/533 |
| Audio | AC97 Codec |
| Base | VIA ITX |
| USB | 8x USB 2.0 |
| Firewire | 2x |
| IDE/SATA | 2x IDE, 2x SATA |
| LAN | 1x 10/100 |
| Parallel | 1x |
| Serial | 1x |
| yes | TV-Out |
| yes | PCI |
| no | Mini-PCI |
| yes | IDE |
| no | DVI |
| no | 800x480 Resolution |
| yes | Passive-Cooling |
| no | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| no | CPU changeable |
| no | Compact Flash |
Please login for creating product ratings.
from vitas am 05.08.2009
|
| See all my comments
from da_user am 23.02.2009
|
| See all my comments
from jmcandeias am 07.01.2009
|
| See all my comments
from mrjohn5 am 11.11.2008
|
from matt3o am 21.10.2008
|
| See all my comments
1
2
3
4
5
6
7
Forward
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 34 ratings |
from vitas am 05.08.2009
|
| See all my comments
from da_user am 23.02.2009
|
| See all my comments
Tolles Board, flott, lief auch unter Linux auf Anhieb einwandfrei. MPEG2/AVI ebenfalls unter Linux kein Problem. Temperaturen auch dann im Normalbereich. Ideal für Lüfterlose PCs!
from jmcandeias am 07.01.2009
|
| See all my comments
Very nice and noiseless litle board, with plenty of possibilities of expansion.
from mrjohn5 am 11.11.2008
|
Bought this IPX board from CarTFT few days ago.
I have to say it's a nice product: simple to install, configure and everything works as expected.
Primary usage is iptables router + firewall.
CarTFT replies to my questions were lightening fast, aswell as shipment - I recommend them.
from matt3o am 21.10.2008
|
| See all my comments
I had the chance to test this board side by side with the via epia counterpart. I have to say that they are pretty much the same board, but the via en12000eg seems to have a more solid design. Power consumption is also similar, with the via board 1w less hungry. I'd say for desktop or casual use get a jetway, for server use get the via.
Compatible enclosures
M200 Enclosure
M200-LCD Enclosure
M300 Enclosure (1x PCI)
M350 Mini-ITX enclosure
