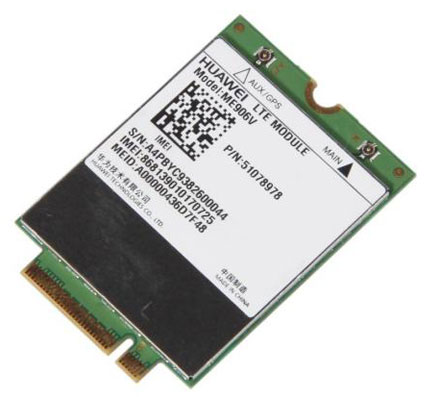

The ME906V is a NGFF modem module, supporting LTE (USA),Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA, Dual-band CDMA/DO BC0/BC1, low power consumption, Global Navigation Satellite System(GNSS). In addition, the ME906V supports NGFF features to optimize performance, power consumption, and usability.
ME906V is the ideal choice for Ultrabook, notebook, tablet etc.
|Unlocked||Ready for use with global services. No contract required.|
LTE (FDD) B1/B2/B4/B5/B8/B13/B17
Penta-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B4/B5/B8
Quad-band EDGE/GPRS/GSM 1900/1800/900/850 MHz
1x: UL (153.6 kbps)/DL (153.6 kbps)
EVDO Rev.A: UL (1.8 Mbps) /DL (3.1 Mbps)
GPRS/EDGE: Multi-slot Class 12
WCDMA PS: UL (384 kbps)/ DL (384 kbps)
DC-HSPA+ :UL (5.76 Mbps)/ DL (42 Mbps)
LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)
Antenna interfaces x 2
M.2 Socket 2
USB 2.0 interface high speed
|Power Supply||Supply voltage range:3.135V~4.4V (3.3 V recommended)|
Normal operation: -10°C to +55°C
Extended operation: -20°C to +70°C
Storage: -40°C to +85°C
|GPS||GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass|
|Supported Systems||Windows 7/Windows 8/Android 4.0 or above|
Ultrabook feature support(ACT, WiFi Offload , DPTF)
Supporting MO and MT
Supporting formats of PDU
Point-to-point and cell broadcast
|Package Contents||New Huawei ME906V NGFF Embedded Module.|
|Data sheet||Download (PDF)|
|Data sheet||Print view|
|Drivers (Windows)||Download (PDF)|
