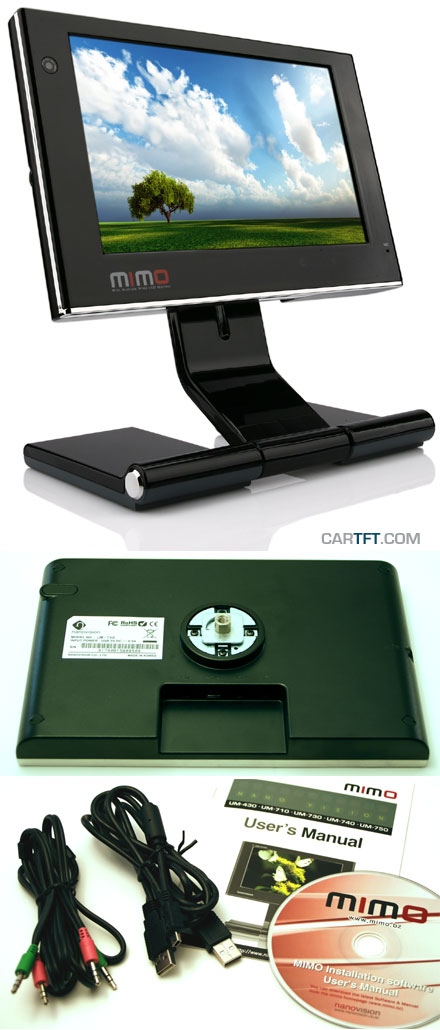

Nanovision UM-740 (7" USB Touchscreen Display, Microphone, Webcam)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Nanovision UM-740 (7" USB Touchscreen Display, Microphone, Webcam)
  • Displaylink !
  • 800x480 !
  • Webcam !
  • Touchscreen !

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-740 model comes with touchscreen and a microphone. It also has an earphone-output, which gets connected to the PC.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : Windows 2000 SP4, Windows XP SP2 (32bit), Windows Vista & 7(32bit/64bit)<
[more]

Share

159.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
19 ratings

Add to cart

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-740 model comes with touchscreen and a microphone. It also has an earphone-output, which gets connected to the PC.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : Windows 2000 SP4, Windows XP SP2 (32bit), Windows Vista & 7(32bit/64bit)
Notes :
- 3D applicationes (eg. 3D games) can not be displayed.

- How many displays can be connected to a PC at the same time ?
1-2 displays : 1.2Ghz CPU, 512MB RAM
3-5 displays : 1.8Ghz CPU, 1GB RAM
6++ displays : 1.6Ghz Dual-Core CPU, 1GB RAM

- MAC OS Support ?
Display, webcam, etc. : Yes
Touchscreen (MAC OS) : Right now only available with non-free 3-rd party driver.

Touchscreen-Driver for Windows is free and included with the shipment !

Model UM-740 (7")
LCD Panel Size 17.78 cm
Display Size 152.4mm (H) x 91.4mm (V)
Pixel Pitch 0.1905mm (H) x 0.1905mm (V)
Number of Colors 16.7M
Contrast 400:1
Brightness 350 cd/m²
Input Power USB (DC 5V)
Screen resolution WVGA (800x480)
Power consumption 2W~4.5W
Dimensions 197mm (H) x 97.5mm (L) x 180.7~210.4 (H)
Weight 0,64 kg
Data sheet Download (PDF)
Data sheet Print view
MAC Driver Download
