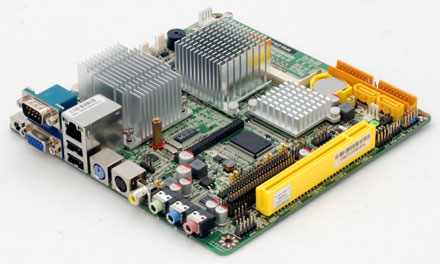

Jetway JNF92-270-LF (with integrated Atom 1.6Ghz CPU, LVDS, HDTV, Onboard power) [FANLESS]*new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNF92-270-LF (with integrated Atom 1.6Ghz CPU, LVDS, HDTV, Onboard power) [<b>FANLESS</b>]*new*

The Jetway JNF94-270-LF is an alternative mainboard for Intel D945GCLF. However it is equipped already with the latest 45nm Atom CPU generation and does not need a fan.

As a premiere, this board enables DualChannel output to two VGA displays by using the additional extension card "2x LAN + 1x VGA".



Notes:
- The board can be powered directly from an AC/DC 12V adapter.
- For vehcile-operation you can use the "DC/DC converter for Intel D945GSEJT".


Share

138.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
CPU INTEL®Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset - INTEL®945GSE + ICH7 chipset
- Build-in INTEL®GMA 950 Graphics Core(Share Memory Size:64/128/224MB)
- Front Side Bus 533MHz
Memory 1 * SO-DIMM Sockets for un-buffered Single Channel DDR2 533/400 SDRAM up to 2 GB
Expansion Slots - 1x PCI
- 1x Jetway Daughter Board
Storage - 2 * Serial ATA2 3Gb/s connectors
- 2* Ultra DMA 100 / 66 IDE connector
Audio Realtek ALC662 6-Channel HD Audio CODEC w SPIF in and out
Ethernet LAN Realtek RTL8111C PCI-E Gigabit Ethernet LAN
USB Embedded 6* USB 2.0/1.1
Special Features Intel Diamond Ville Platform
Support ACPI S3
Support CPU Smart FAN
Support DC FAN
Onboard Power
Rear Panel I / O - 2 * USB 2.0/1.1 ports
- 1 * PS/2 Keyboard connector
- 1 * RJ-45 port
- 3 * Audio I/O ports ( Line-in, mic and line-out )
- 1 * HDTV
- 1 * TV-Out RCA
- 1 * VGA port
- 1 * COM port
- 1 *12V DC Power
Internal I / O - 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
- 1 * 18-bit dual channel LVDS connector
- NB / Chassis Fan connectors;
- 1 * COM header RS422/485 (12V/5V selectable)
- 1 * Parallel header
- 1 * 8bit GPIO
BIOS Award 8MB SPI Flash ROM
Form Factor Mini ITX Form Factor(17cmx17cm)
Scope of supply - Jetway JNF92-270-LF ITX Mainboard
- Driver CD
- Manual
- 1x IDE cable
- 1x HDTV PCI connector plate
- 2x SATA cables
- ATX I/O shield
Data sheet Download (PDF)
Data sheet Print view
Specifications [EN] Download (PDF)
