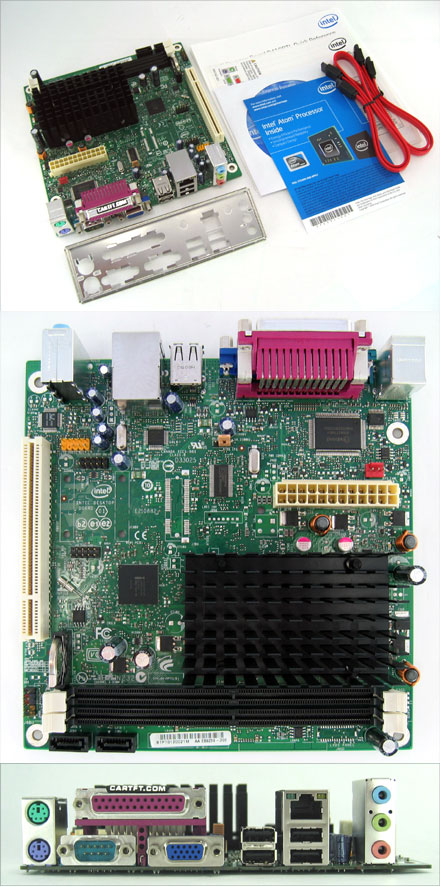

Intel D410PTL (with integrated Atom 1x 1.66Ghz CPU) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel D410PT<b>L</b> (with integrated Atom 1x 1.66Ghz CPU) [<b>FANLESS</b>]

Differences to D410PT-model : 1x RS232 and 1x Parallel on mainboard rear side.

The D410PT as well as the D510MO offer passive cooling and hide on the one hand a -single Core Atom processor (D410) and on the other hand a Dual Core Atom processor (D510 – also used in numerous new netbooks) of the newest generation.

In the area of power consumption (~30 watts) the new mainboards range within the low, classic Intel Atom level. The major advantage of the new mainboard ist he possibility to utilize the 24 pin ATX jack, which makes the use of an additional P4 connector unnecessary.

As with the other mainboard generations, Intel again, foc
[more]

Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Compare
CPU Intel Atom D410 1x1.66Ghz
Graphics Intel GMA 3150
Formfactor ITX (17x17cm)
RAM 2x DDR-II 667/800
Audio Realtek HD Codec
Base Intel ITX
USB 8x USB 2.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100
Parallel 1x
Serial 1x
no TV-Out
yes PCI
no Mini-PCI
no IDE
no DVI
no 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash

Differences to D410PT-model : 1x RS232 and 1x Parallel on mainboard rear side.

The D410PT as well as the D510MO offer passive cooling and hide on the one hand a -single Core Atom processor (D410) and on the other hand a Dual Core Atom processor (D510 – also used in numerous new netbooks) of the newest generation.

In the area of power consumption (~30 watts) the new mainboards range within the low, classic Intel Atom level. The major advantage of the new mainboard ist he possibility to utilize the 24 pin ATX jack, which makes the use of an additional P4 connector unnecessary.

As with the other mainboard generations, Intel again, focuses on the extension possibilities. Therefore, both mainboards offer a willingly utilized PCI slot, and the D510MO additionally offers a Mini PCIexpress socket and a LPT extension slot. With these possibilities up their sleeve, with minimum effort they offer variable fields of application.



Note : This mainboard does not fit into Voom-2, because of the big heatsink.

Name D410PTL
Form Factor Mini-ITX Mainboard
CPU Intel Atom D410 @ 1x 1.66GHz (Silverthorne 45nm)
Chipset Intel NM10 Express
L2 Cache 512kb
Graphics Intel GMA 3150
Memory 2x DDR2 667/800 RAM (bis zu 4GB)
Power 24 Pin ATX
Connectors (rear) - 1x RS232
- 1x Parallel
- 1x PS/2
- 1x D-SUB15 (VGA)
- 4x USB 2.0
- 1x LAN 10/100 MBit
- 3x Sound (Line Out, Line In, Microphone)
Audio Realtek High Definition Audio
Connectors (internal) - PCI
- Audio
- 4x USB
- 2x SATA
Included - D410PT Mainboard (with 1x 1.66Ghz Atom CPU)
- I/O ATX rear plate
- 2x SATA cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
