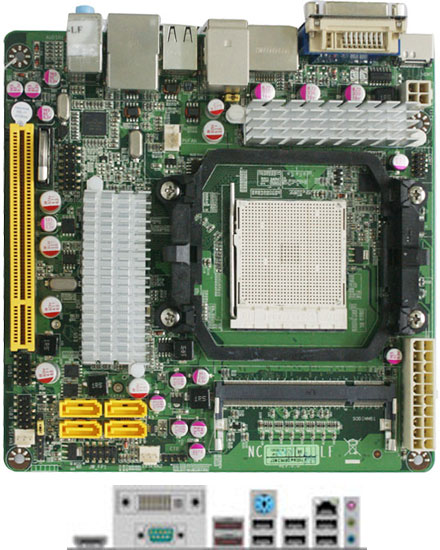

Jetway JNC84E (for AMD AM2/AM2+) (Remnant)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNC84E (for AMD AM2/AM2+) (Remnant)
  • DirectX 10 !
  • Mini-PCI Express !

Remnant with I/O shield, 2x SATA cable. 2 years warranty.

• AMD RS785 Chipset + SB750 Chipset
• Support Socket AM2+ Quad core Opteron™ & Phenom™
• Support HT3.0 Technology
• Integrated ATI Radeon HD 4200(Support Microsoft DX 10.1)
• Support 4 Serial ATA2 Devices with RAID 0,1,5,10
• Support Dual Channel DDR2 800/667
• Integrated ALC662 HD Audio CODEC with 6-CH
• Support DVI-D/HDMI Output
• Supports 10/100M LAN / Gigabit LAN
• Compliance with EuP standard
• Support CPU Smart FAN
• Ready for Windows® 7™
• 17 x 17C
[more]

Share

39.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Compare
CPU AMD AM2
Graphics ATI Radeon HD 4200
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-II
Audio Realtek ALC662 6-Channel HD
Base
USB 10x USB2.0
Firewire --
IDE/SATA 4x SATA (RAID)
LAN 1x 10/100/1000
Parallel --
Serial 1x
yes TV-Out
yes PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash

Remnant with I/O shield, 2x SATA cable. 2 years warranty.

• AMD RS785 Chipset + SB750 Chipset
• Support Socket AM2+ Quad core Opteron™ & Phenom™
• Support HT3.0 Technology
• Integrated ATI Radeon HD 4200(Support Microsoft DX 10.1)
• Support 4 Serial ATA2 Devices with RAID 0,1,5,10
• Support Dual Channel DDR2 800/667
• Integrated ALC662 HD Audio CODEC with 6-CH
• Support DVI-D/HDMI Output
• Supports 10/100M LAN / Gigabit LAN
• Compliance with EuP standard
• Support CPU Smart FAN
• Ready for Windows® 7™
• 17 x 17CM Mini-ITX Form Factor




Form Factor
Mini-ITX 170 mm x 170 mm
CPU
Support AMD Socket AM2/AM2+
Memory
2 * 240-pin DIMM socket for unbuffered Dual DDR2 800 SDRAM up to 4GB
Chipset
AMD RS785 Chipset + SB750 Chipset
Serial ATA Interface
Embedded SB750 Chipset
4 * Serial ATA2 3Gb/s connectors
Supports HDDs with RAID 0, 1,5,10 functions
Audio Interface Realtek ALC662 6-Channel HD Audio CODEC
LAN Interface
Realtek RTL8111DL PCI-E LAN chip for 10/100M LAN / Gigabit LAN
Extended Interface
1 * 32-bit PCI Slot
1 * Mini-PCI-E connector
Internal I/O Port
2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
CPU / Chassis Fan connectors;
1 * 4-pin ATX 12V Power connector
1 * 20-pin ATX Power connector
1 * COM hearder
BIOS
8 MB SPI Flash ROM
External I/O Port
6 * USB 2.0/1.1 ports
1 * PS2 KB/MS port
1 * RJ-45 port & 2 * e-SATA ports
1 * Audio I / O ports
1 * VGA port
1 * DVI-D port
1 * HDMI port
Special Features
Advanced Power Design that supports the latest Socket-AM2+ CPU “IMAGE IT!” System Backup Software and “ProMagicPLUS!” System Recovery System
Dimension
170mm x 170mm
Lieferumfang
- Jetway JNC84-E ITX mainboard
- DriverCD, Manual
- I/O Shield
- 2x SATA cable
- 1x COM connector cable
Data sheet Download (PDF)
Data sheet Print view
Specifications [EN] Download (PDF)
