Intel DH61AG (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge, Thin-Mini-ITX) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !

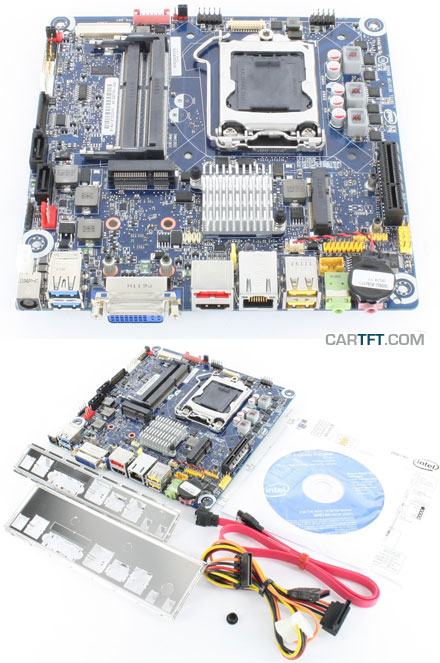

Intel DH61AG (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge, Thin-Mini-ITX) *new*
3D 360° View
  • Sandy Bridge !
  • Thin-Mini-ITX !
  • Perfect for AIO-PC !

The Intel® Desktop Board DH61AG powered by the 2nd generation Intel® Core™ processors in the LGA1155 package offers Intel® HD Graphics with best-in-class media processing features in an innovative low z-height, Thin Mini-ITX form factor. Fully compatible with low height components such as SO-DIMMs and Full and half length PCI Express* mini-cards, the DH61AG also supports premium features such as SuperSpeed USB3, eSATA, and Hi Current/Fast charging USB 2.0 ports. Full display output support with HDMI* and DVI-I is complemented by flexible eDP or LVDS flat panel display support. Combination of low height components, premium features, and an external power supply make the DH61AG the pe [more]

Share

114.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart

The Intel® Desktop Board DH61AG powered by the 2nd generation Intel® Core™ processors in the LGA1155 package offers Intel® HD Graphics with best-in-class media processing features in an innovative low z-height, Thin Mini-ITX form factor. Fully compatible with low height components such as SO-DIMMs and Full and half length PCI Express* mini-cards, the DH61AG also supports premium features such as SuperSpeed USB3, eSATA, and Hi Current/Fast charging USB 2.0 ports. Full display output support with HDMI* and DVI-I is complemented by flexible eDP or LVDS flat panel display support. Combination of low height components, premium features, and an external power supply make the DH61AG the perfect solution for high performance AIO systems, Tiny FF systems, and Home Theatre PC systems.

Name DH61AG
Form Factor (Thin-)Mini-ITX Mainboard
CPU Intel Core i3/i5/i7 CPU Series
Socket LGA1155
Chipset Intel H61 Express Chipsatz (B3)
Graphics Intel HD100/HD200
Memory 2 x So-DDR3 DIMM,
1333/1066 Mhz, up to 16GB
Power DC-In 19.5V (7.9A max.)
Connectors (rear) 2 x USB 2.0
2 x USB 3.0
1 x Audio
1 x 10/100/1000 Mb/s Ethernet (Intel 82579V)
1 x DVI-I (Analog+Digital)
1 x HDMI
1 x eSATA
SATA 2x SATA 3GB/s
Audio 10-channel Intel High Definition (Intel HD Audio)
Connectors (internal) 8x USB 2.0
3x SATA (3GB/s)
1 x SPDIF
1 x PCIexpress 2.0 x4
1 x Mini-PCIe (Half length)
1 x Mini-PCIe (Full length)
Included - DH61AG Mainboard
- 2x I/O ATX rear plate
- 1x SATA cable
- 1x Power adapter cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
