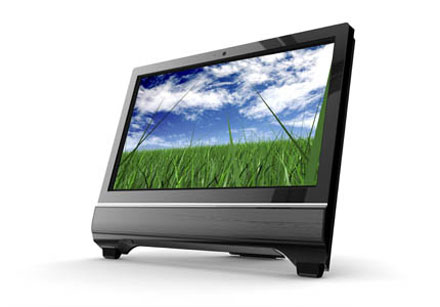

ECS G11 All-In-One PC Barebone (21.5" MultiTouch FullHD TFT, für Intel Sandy Bridge Core i7/i5/i3) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
ECS G11 All-In-One PC Barebone (21.5" MultiTouch FullHD TFT, für Intel Sandy Bridge Core i7/i5/i3) *new*
  • ECS G11-21ERS6BE-1
  • WLAN 802.11 b/g/n
  • Barebone !

ECS G11 equipped with Intel's latest Sandy Bridge plateform based on H61 express chipset delivers a speady and stable processing for multitasking. With large 21.5'' touch panel, full HD 1080p support and HDMI compatibility, G11 maximizes your Windows 7, gives your hte best support on entertainment and games, and makes life more fun through the power of touch. G11 is hte bst PC solution for individual, family, government, and school solution.

For a full PC you need in addition :
- Intel Core i3/i5/i7 Mobile CPU (Sandy Brdige, LGA1155)
- 1x SO-DDR-III RAM
- 1x 3.5" HDD (or 2.5" HDD/SSD)
- 1x Slimline CD/DVD-drive

Features:
-
[more]

Share

399.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

4 von 5 Sternen
1 ratings

Add to cart

ECS G11 equipped with Intel's latest Sandy Bridge plateform based on H61 express chipset delivers a speady and stable processing for multitasking. With large 21.5'' touch panel, full HD 1080p support and HDMI compatibility, G11 maximizes your Windows 7, gives your hte best support on entertainment and games, and makes life more fun through the power of touch. G11 is hte bst PC solution for individual, family, government, and school solution.

For a full PC you need in addition :
- Intel Core i3/i5/i7 Mobile CPU (Sandy Brdige, LGA1155)
- 1x SO-DDR-III RAM
- 1x 3.5" HDD (or 2.5" HDD/SSD)
- 1x Slimline CD/DVD-drive

Features:
- Support Intel Sandy Brdige Core i3 / i5 / i7
- 2 x SO-DIMM DDR3 800/1066/1333 up to 18GB
- 21.5" FullHD 1080p Multi-Touch LED TFT
- HDMI
- 6-in-1 Card Reader (SD/SDHC/MS/MS Pro)
- WLAN 802.11 b/g/n
- Built-In speakers, microphone and camera
- With stand and VESA-mounting holes



System noise:
-Idle < 26dBA
-3Dmark < 32dBA
-Max 80%/Ther 85% < 35dBA





Dimensions / Weight 565mm W x 440mm D x 60mm H, 1.4kg
CPU Intel Core i3, i5, i7 (max. 65W TDP)
Sandy Bridge LGA1155
Chipset / FSB Intel H61 Express
RAM 2x Dual-Channel SO-DDR-3 RAM (up to 16GB 1066/1333)
Graphics Intel HD Graphics
Audio/Video 2.5W Speakers
1.3MP Camera with digital Mic
TFT Native resolution : 1920x1080
Brightness : 300cd/m²
Viewing angle 160°/160°
Anti Glare
10-Finger resistive Multi-Touch
Expansion - 1x Mini-PCIe (occupied by WLAN card)
OS Support Windows 7
Chassis I/O 2 x USB 2.0
2x Audio (1x Headphone, 1x Mic)
1x 6 in 1 Card Reader
Drive bays 1 x 3.5" SATA HDD drive bay
1 x Slim-Line CD/DVD drive bay
Mainboard (Thin-ITX) I/O 1 x DC JACK for DC19V single power input
1 x HDMI Out
1 x RJ-45 GbE port
4x USB 2.0
Compliance RoHS 2.0, Energy Star, E-Standby, AUS/NZ Compliance, ErP Compliance, EPEAT
Scope of supply - ECS G11 AIO-PC Barebone (G11-21ERS6BE-1 with H61H-G11 MB) with Halterung
- Mini-PCIe WLAN card (802.11 b/g/n) + Antenna
- AC/DC Adapter (19V, 150W) + EU power cord
Data sheet Download (PDF)
Data sheet Print view
ECS Elitegroup Catalog Download (PDF)
Specifications [EN] Download (PDF)
