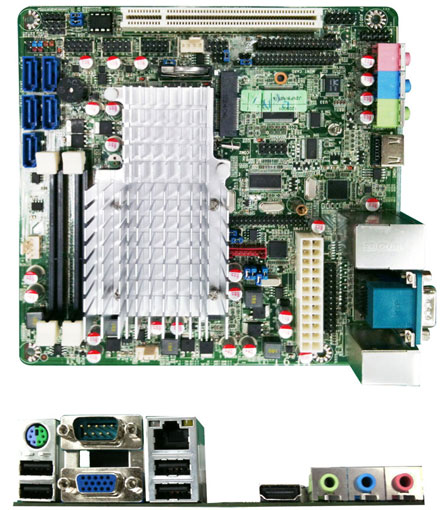

Jetway NF9I-2550 (Intel Cedar Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !

INTEL® Cedar Trail-D Processor D2550 + ICH10R Chipset
Support 2 * DDR3 1066MHz Single CH up to 4GB
Support 5 * Serial ATAII (3Gb/s) with RAID 0, 1, 5 & 10
Realtek ALC662 6-CH HD Audio CODEC
1 * 24 bits Dual Channel LVDS header
Supports 1 * Intel 82574L Gigabit LAN
Supports JetWay 2nd Gen. Daughter Board (4x PCI Express interface)
Support Watch dog Technology
Support CPU Smart FAN
Compliance with ErP standard
Mini-ITX Form Factor (170mm x 170mm)

JetWay JNF9I-2550 also supports the following daughter boards:
1. JADE4RTLANG: 4x Realtek GBe LAN (PCi Express)
2. JADE4IN [more]

249.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

INTEL® Cedar Trail-D Processor D2550 + ICH10R Chipset
Support 2 * DDR3 1066MHz Single CH up to 4GB
Support 5 * Serial ATAII (3Gb/s) with RAID 0, 1, 5 & 10
Realtek ALC662 6-CH HD Audio CODEC
1 * 24 bits Dual Channel LVDS header
Supports 1 * Intel 82574L Gigabit LAN
Supports JetWay 2nd Gen. Daughter Board (4x PCI Express interface)
Support Watch dog Technology
Support CPU Smart FAN
Compliance with ErP standard
Mini-ITX Form Factor (170mm x 170mm)

JetWay JNF9I-2550 also supports the following daughter boards:
1. JADE4RTLANG: 4x Realtek GBe LAN (PCi Express)
2. JADE4INLANG: 4x Intel GBe LAN (PCi Express)
3. JADE4COMCB: 4x Seria Ports
4. JADE4NV13M: NVIDIA NV13M, with 1GB DDR3 on board, DVI-I, HDMI and Display port output

CPU	INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)
Chipset	INTEL® ICH10R Express chipset
Memory	2 * DDR3 1066MHz Single CH SO-DIMM up to 4GB
Expansion Slots	1 * PCI slot 1 * full size MINI PCI-E
Storage	5 * Serial ATAII 3Gb/s with RAID 0, 1, 5 & 10 1 * mSATA (Selectable with Mini PCI-E)
Audio	Realtek ALC662 6-CH HD Audio CODEC
Ethernet LAN	1 * Intel 82574L PCI-E Gigabit LAN
LVDS	Onboard 24-bits Dual channel connector
USB	Embedded 10 * USB 2.0/1.1
Special Features	Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O	4 * USB 2.0/1.1 ports 1 * PS/2 port 1 * RJ-45 port 1 * COM port (COM1 for RS232/422/485) 1 * VGA port 1 * HDMI Port 3 * Audio phone jack
Internal I / O	3 * USB 2.0/1.1 headers for 6 USB 2.0 ports 1 * Parallel header CPU /NB / Chassis Fan connectors; 1 * GPIO header & 1 Parallel headers 1 * COM header 1 * Chassis Intrusion header
BIOS	AMI 16MB UEFI DIP Flash ROM
Form Factor	Mini ITX Form Factor(170mm x 170mm)
Functional	NAS, Storage, Networking Appliance, NVR, DVR
Certificate	CE, FCC, RoHS
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (ARM)	Download (PDF)
Jetway Catalog (Mainboards)	Download (PDF)
Datasheet	Download (PDF)
