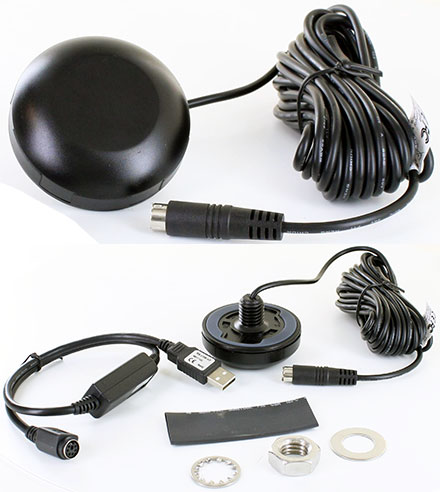

Globalsat MR-350S4 USB GPS Receiver (Sirf 4 chipset) -Outdoor-

Globalsat MR-350S4 USB GPS Receiver (Sirf 4 chipset) -Outdoor-
  • WAAS ENGOS
  • MR-350S4

- Compatible with CarPC/Notebook
- Connection cable length ~4,40m
- Sirf Star IV chipset
- Protocol: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC)
- Connector : Custom PS/2 + USB
- waterproof casing IPx7, screwable M24
- WAAS ENGOS is supported


Note : The connector cable of the GPS receiver has an round plug. This enables you to easily put the cable through the drilling hole. An adapter for USB is included in scope of supply.

Specification
Chipset:SiRF Star IV
Frequency:L1, 1575.42 MHz
C/A code:1.023 MHz chip rate
Channels:48 channel all-in-view tracking
Sensitivity: -163
[more]

Share

69.00 EUR
incl. 19% VAT, plus shipping
In Stock (21 pcs)

5 von 5 Sternen
25 ratings

Add to cart

- Compatible with CarPC/Notebook
- Connection cable length ~4,40m
- Sirf Star IV chipset
- Protocol: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC)
- Connector : Custom PS/2 + USB
- waterproof casing IPx7, screwable M24
- WAAS ENGOS is supported


Note : The connector cable of the GPS receiver has an round plug. This enables you to easily put the cable through the drilling hole. An adapter for USB is included in scope of supply.

Specification
Chipset:SiRF Star IV
Frequency:L1, 1575.42 MHz
C/A code:1.023 MHz chip rate
Channels:48 channel all-in-view tracking
Sensitivity: -163 dBm
Update rate : 1Hz / 5Hz
Accuracy
Position:<2.5m
Velocity:<0.01 m/s
Time:1us synchronized to GPS time
Datum
Default:WGS-84
Acquisition Time
Reacquisition:0.1 sec., average
Hot start:<1 sec.
Warm start:<35 sec. (<15s with CGEE)
Cold start:<35 sec. (<15s with CGEE)
Dynamic Conditions
Altitude:18,000 meters (60,000 feet) max
Velocity:515 meters /second (1000 knots) max
Acceleration:Less than 4G
Jerk:20m/sec × 3
Power
Main power input:4.5V ~ 6.5V DC input
Power consumption:70mA
Protocol
Baud rate:4,800 bps
Output message:NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL
Physical Characteristics
Dimension:62mm diameter, 21mm height
Cable length:4.5 meters(15 feet)
Operating temperature: -40°C to +85°C

Data sheet Download (PDF)
Data sheet Print view
Win 7/8.1/10 Driver Download
Win 11 Driver .inf Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 25 ratings
5 von 5 Sternen from canalguidesystems am 21.12.2015 | | See all my comments

Good fast GPS

5 von 5 Sternen from jtm@soundtechnologies.co.uk am 10.05.2013 |

Sehr gut

Update from :2015-03-30 10:58
Great product and service.

4 von 5 Sternen from andreas.holtgrewe@t-online.de am 01.03.2013 |

Sehr schönes Gerät. Funktioniert einwandfrei, sogar bei der Erstinstallation in geschlossenen Räumen! Für Windows 7 ist aber ein zusätzlicher Treiber nötig!

5 von 5 Sternen from claudia am 18.11.2012 |
5 von 5 Sternen from Mitsu3Sport am 12.07.2012 |

This receiver is great. I have a 4x4 car with rack on top and I have placed the receiver on the rack. It's been there for half a year now in the rain, snow, mud and sun and is intact. When I open the navigation application I get directly all the satelites available at no time delay.
