Intel DH61DL (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !

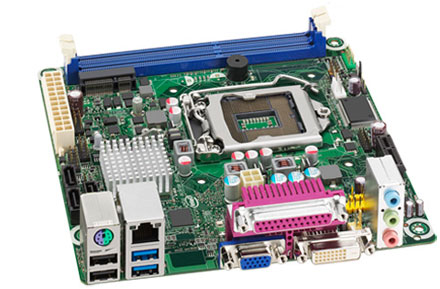

Intel DH61DL (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge) *new*
3D 360° View
  • Sandy Bridge !

Enjoy great multitasking performance in a small form factor board with the Intel® Desktop Board DH61DL. It is designed to run with the 2nd generation Intel® Core™ processor family in the LGA1155 socket. This mini-ITX board supports the latest features including USB 3.0, and dual display capabilities making it an excellent choice for an entry-level mini-ITX based system.

This board offers premium features such as Intel® High Definition Audio (Intel® HD Audio) with 5.1 surround sound and multi-streaming capability and an integrated Intel® PRO 10/100/1000 Network Connection in a low-power design.

The Intel Desktop Board DH61DL is Microsoft Windows* 7 Ult
[more]

Share

78.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
3 ratings

Add to cart
Compare
CPU Intel Core i3/i5/i7 (LGA1155)
Graphics Intel HD100/HD200
Formfactor ITX (17x17cm)
RAM 2 x DDR3 (1066/1333)
Audio 8-channel Intel High Definition Audio
Base Intel ITX
USB 8x USB 2.0, 2x USB 3.0
Firewire --
IDE/SATA 3x SATA-II
LAN 1x 10/100/1000
Parallel 1x
Serial 1x
no TV-Out
no PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash

Enjoy great multitasking performance in a small form factor board with the Intel® Desktop Board DH61DL. It is designed to run with the 2nd generation Intel® Core™ processor family in the LGA1155 socket. This mini-ITX board supports the latest features including USB 3.0, and dual display capabilities making it an excellent choice for an entry-level mini-ITX based system.

This board offers premium features such as Intel® High Definition Audio (Intel® HD Audio) with 5.1 surround sound and multi-streaming capability and an integrated Intel® PRO 10/100/1000 Network Connection in a low-power design.

The Intel Desktop Board DH61DL is Microsoft Windows* 7 Ultimate and Windows Vista* Ultimate WHQL certified.

Name DH61DL
Form Factor Mini-ITX Mainboard
CPU Intel Core i3/i5/i7 CPU Series
Socket LGA1155
Chipset Intel H61 Express Chipsatz (B3)
Graphics Intel HD100/HD200
Memory 2 x DDR3 DIMM,
1066/1333 Mhz, bis zu 8GB
Power 24 Pin ATX
Connectors (rear) 2x USB 2.0
2 x USB 3.0
1 x Audio
1 x 10/100/1000 Mb/s Ethernet (Intel 82579V)
1 x DVI-D
1 x DSUB-15 VGA
1x PS/2
SATA 3x SATA 3GB/s
Audio 6-channel Intel High Definition (Intel HD Audio)
Connectors (internal) 6x USB 2.0
3x SATA (3GB/s)
1 x LPT
1 x RS232
1 x PCIexpress x16
1 x Mini-PCIe (Half length)
Included - DH61DL Mainboard
- I/O ATX rear plate
- 2x SATA cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
Review [DE] Download (PDF)
Review [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 3 ratings
5 von 5 Sternen from adilenti am 17.08.2012 | | See all my comments

Neues einsteiger board, bietet alles was man braucht. nur zu empfehlen ;)

5 von 5 Sternen from arconnen am 08.09.2011 | | See all my comments

very nice product

5 von 5 Sternen from maxwen am 12.07.2011 | | See all my comments

Replacement for Atom D510MO Board in my car-pc. Used together with a Pentium G620T cpu. If you need more then 2 USB 2.0 ports you need to buy some for the internal USB connectors (3x).
