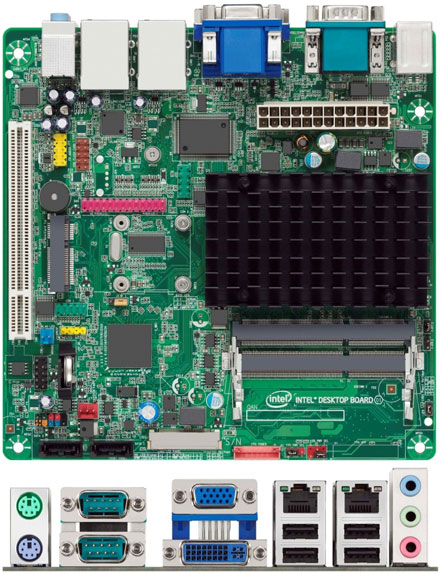

Intel D2500CC-E (Intel Atom 2x 1.86Ghz CPU, 2x LAN, 4x RS232) [FANLESS] (Remnant)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel D2500CC-E (Intel Atom 2x 1.86Ghz CPU, 2x LAN, 4x RS232) [<b>FANLESS</b>] (Remnant)
3D 360° View
  • Mini-PCI-Express !
  • 2x 1.86Ghz !
  • 2x Gigabit LAN !
  • 4x RS232 !

Remnant with I/O shield, 1x SATA cable, manual. 2 years warranty.

- Dual-core Atom
- DVI-I for full dual-independent display support
- 4 serial ports & headers for multiple peripherals
- Boards are suitable for other devices; ATM, Kiosk, POS, etc.



Share

99.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
15 ratings

Add to cart
Compare
CPU Intel Atom D2500 2x1.86GHz
Graphics Intel GMA
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio 6+2 Channel HD Audio
Base Intel ITX
USB 7x USB 2.0
Firewire --
IDE/SATA 2x SATA
LAN 2x 10/100/1000
Parallel --
Serial 4x
no TV-Out
yes PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
Name D2500CC-E
Form Factor Mini-ITX Mainboard
CPU Intel® Atom™ D2500 (2x 1.86GHz)
1MB Cache, Without Hyper-Threading
Chipset Intel NM10 Express
Graphics VGA + DVI-I + LVDS
Memory 2x SO-DDR3 800/1066, 4GB max, Single channel
Power 24 Pin ATX
LAN 2x Intel 10/100/1000 MBit
Connectors (rear) - 4x USB 2.0
- 2x LAN RJ-45
- 3x Audio
- 2x PS/2
- 2x RS232
- 1x DVI-I
- 1x VGA
Audio 6+2 Channel HD Audio
Connectors (internal) - 2x SATA-II (3GB/s)
- 3x USB 2.0
- 1x PCI
- 1x Mini-PCIe
- 2x RS232
- Front Audio
- LVDS (Dual 24bit)
Included - D2500CC Mainboard (with 2x 1.86Ghz Atom CPU)
- I/O ATX rear plate
- 2x SATA cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
Cedar Trail Review [DE] Download (PDF)
Cedar Trail Review [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 15 ratings
5 von 5 Sternen from pixkari am 29.01.2014 | | See all my comments

Good.

Update from :2014-09-16 04:58
Good and fits to purpose

4 von 5 Sternen from vdelft am 06.01.2014 | | See all my comments

Good MB. In few hours I've install OpenBSD 5.4 (flashrd on usb) with all firewall features. Via the bios, we can ask the MB to restart after power cut. Very well appreciated. No heat problems

5 von 5 Sternen from 8ZXYpqHt am 01.01.2014 | | See all my comments
5 von 5 Sternen from kallenbach am 23.05.2013 |

Bekanntes Atom-Board von Intel. Loben muss man die Abwicklung durch CarTFT. Super schnell! Und das beim niedrigsten Preis, den Dr. Google findet. Klasse!

Update from :2013-11-27 08:12
Wie immer alles super OK. Danke
