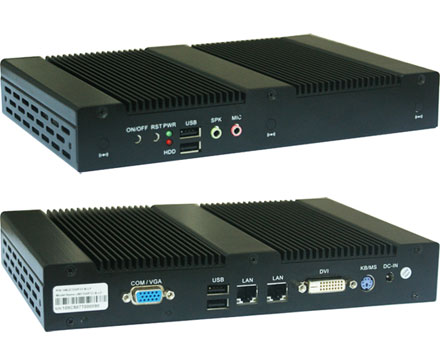

Jetway JBC350F32-B (Intel 945GSE)

1. INTEL® 945GSE + ICH7M Chipset
2. Support INTEL® Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
3. Build-in INTEL®GMA 950 Graphics Core
4. Integrated LVDS support 18-bit TFT LCD
5. Supports Daul Gigabit LAN
6. Integrated ALC662 HD Audio CODEC with 6-CH
7. Support Watch dog Technology
8. Easy to use
9. Support 2.5" SATA HDD
10. Small size

Product Accessories
- Manual
- CD
- Wall mount bracket
- AC adapter
- Power cord
- LCD Mount

249.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Model No	JBC350F32-B
Motherboard Specification
CPU	INTEL ® Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset	INTEL® 945GSE + ICH7M chipset Build-in INTEL® GMA 950 Graphics Core(Share Memory Size: 128/224MB) Front Side Bus 533MHz
Memory	1 * SO-DIMM Sockets for un-buffered Single Channel DDR2 533/400 SDRAM Up to 2 GB
LAN	2 * Realtek RTL8111DL PCI-E Gigabit Ethernet LAN
Audio	Realtek ALC662 6-Channel HD Audio Codec
Storage	1 * Serial ATA2 3Gb/s connector 1 * Ultra DMA 133/100 IDE connector
USB	Embedded 4 * USB 2.0/1.1
BIOS	Award 8MB DIP Flash ROM
Form Factor	3.5” SBC (148mm x 102mm)
Barebone Specification
Product size	240(W) x 160(D) x 37(H)mm
Specs Devices	1 x 2.5” HDD Drive Bay (Only support SATA 2.5” HDD)
Colors	Black
Front I/O Port	2 * USB 2.0 1 * Line-OUT & 1 * MIC 1 * Power button & 1 * Reset button
Rear I/O Port	2 * USB 2.0 ports 1 * PS2 K/B connector 2 * RJ-45 port(Gigabit LAN) 1 * 12V DC jack 1 * DVI-D port 1 * VGA port
Power supply	+12V DC-IN Power
Accessory	60W AC-DC Adapter x1 Power Cord x1 CD x1 Manual x1 Wall Mount x2 LCD Mount x 2 COM cable x 1
Application	Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, Factory Automation.
Packing	Color Box Dimension417(W) x 137(D) x 296(H)mm Gross Weight2.6KG Net Weight2.1KG

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
Specifications [EN]	Download (PDF)
