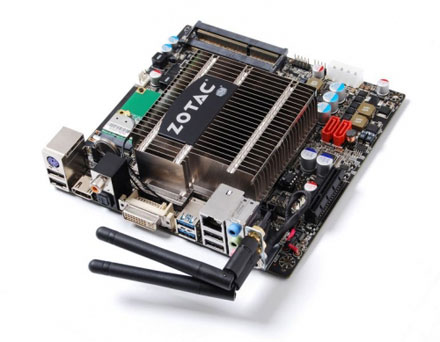

ZOTAC IONITX T Series (Intel Atom D525) [IONITX-T-E]

PRODUCT IS CURRENTLY NOT AVAILABLE !
ZOTAC IONITX T Series (Intel Atom D525) [IONITX-T-E]

Experience Next-Generation NVIDIA® ION™ graphics processing with energy-efficient Intel® Atom™ processors in a compact mini-ITX form factor with the ZOTAC IONITX series. Next-Generation NVIDIA® ION™ graphics processing with 512MB DDR3 memory enables the ZOTAC IONITX series to deliver a premium computing experience rich in multimedia content.

NVIDIA® PureVideo™ HD technology delivers flawless playback of Blu-ray and other high-definition videos for the ultimate home theatre experience directly from the ZOTAC IONITX series. Adobe® Flash® video acceleration enables smooth playback of streaming Internet video in standard and high-definition formats wi [more]
Share

198.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

Experience Next-Generation NVIDIA® ION™ graphics processing with energy-efficient Intel® Atom™ processors in a compact mini-ITX form factor with the ZOTAC IONITX series. Next-Generation NVIDIA® ION™ graphics processing with 512MB DDR3 memory enables the ZOTAC IONITX series to deliver a premium computing experience rich in multimedia content.

NVIDIA® PureVideo™ HD technology delivers flawless playback of Blu-ray and other high-definition videos for the ultimate home theatre experience directly from the ZOTAC IONITX series. Adobe® Flash® video acceleration enables smooth playback of streaming Internet video in standard and high-definition formats with the ZOTAC IONITX series for a complete multimedia experience on and offline.

Product Name
    Product Name ZOTAC ION ITX T Series
Model
    Model IONITX-T-E/U/B/J
Chipset
    Manufacturer Intel®
    Chipset NM10 Express
    GPU Next-Generation NVIDIA® ION™ w/512MB DDR3
CPU Compatibility
    Name Intel® Atom™ D525 (dual-core) (1.8 GHz) Intel® HyperThreading™ technology
    Socket N/A (integrated)
    Bus 800 Mhz
Memory
    Memory Type DDR3
    Memory Speed 800 MHz
    Slots 2 x 240-pin DIMM
    Capacity Up to 4GB
CPU and Memory Compatibility List
    CPU and Memory Compatibility List see above
3D API
    DirectX DirectX 10.1
    OpenGL OpenGL 3.2
Expansion
    Slots 1 x Mini PCI Express (occupied by WiFi module)
1 x PCI Express x4 (single-lane / open-end / PCIe x16 compatible)
Networking
    Ethernet 10/100/1000Mbps
    WiFi 802.11n/g/b
Audio
    Analog 6-ch HD
    Digital Optical S/PDIF and HDMI outputs
Ports
    DVI 1 (Dual-Link) (HDCP)
    HDMI 1 (1080p HDCP w/8-ch audio)
    VGA 1 (w/Adapter)
    SATA 2
    eSATA N/A
    PATA N/A
    PS/2 1
    Serial N/A
    USB Ports 6 x USB 2.0 (4 on back panel / 2 via pin header)
2 x USB 3.0 (back panel)
    FireWire N/A
Cooler
    Cooler Passive
Form Factor
    Form Factor mini-ITX
OS Compatibility
    Windows Certified for Windows® 7 with DirectCompute support
General
    SLI Supported no
    Maximum Resolution na
Other
    Wake-On Support Wake-on USB
Wake-on-LAN
    Overclocking features YES
Packaging
    Package Contents ZOTAC ION ITX-T motherboard
2 x SATA cables
1 x SATA power cable
1 DVI-to-VGA adapter
1 x I/O back plate
2 x WiFi antennas
90-watt power brick
    Graphics Output 1 DVI / 1 HDMI / 1VGA
Data sheet Download (PDF)
Data sheet Print view
