Xenarc 1530YR -- 15.3" TFT VGA + PAL/NTSC Roof mount display

PRODUCT IS CURRENTLY NOT AVAILABLE !

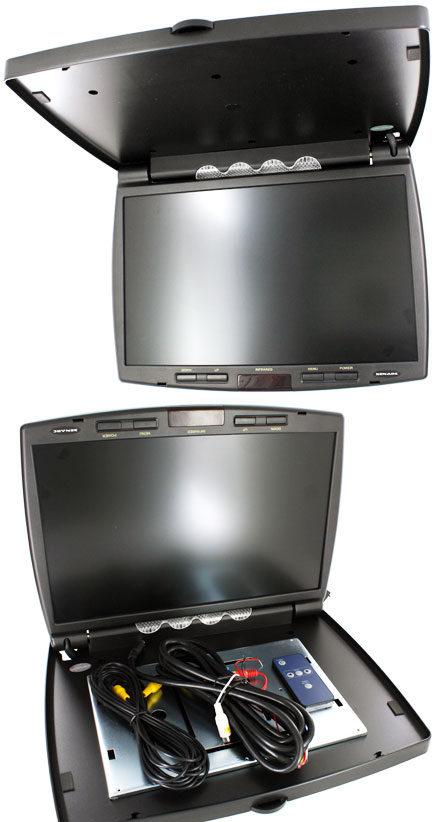

Xenarc 1530YR -- 15.3" TFT VGA + PAL/NTSC Roof mount display
  • Roof mount !
  • 17 inch !
  • High resolution !

In-vehicle computing has taken the next step, and Xenarc Technologies is right in stride with it, introducing the 1530YR. This monitor is a roofmount VGA monitors that also features composite video and audio inputs, making this monitor the ultimate versatility leader.

These monitors have built in IR transmitters. Use the monitor with the optional wireless IR headphones for convenient, quiet use. The high native resolution of 1280x768 (WXGA) delivers crystal clear images while the built-in scaler supports display resolution all the way up to 1600x1200. Two audio/video inputs, along with the VGA input, allow the monitor to be plugged into 2 audio/video devices, as well as a computer [more]
Share

398.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart

In-vehicle computing has taken the next step, and Xenarc Technologies is right in stride with it, introducing the 1530YR. This monitor is a roofmount VGA monitors that also features composite video and audio inputs, making this monitor the ultimate versatility leader.

These monitors have built in IR transmitters. Use the monitor with the optional wireless IR headphones for convenient, quiet use. The high native resolution of 1280x768 (WXGA) delivers crystal clear images while the built-in scaler supports display resolution all the way up to 1600x1200. Two audio/video inputs, along with the VGA input, allow the monitor to be plugged into 2 audio/video devices, as well as a computer. It is also perfect for displaying HD (High-Definition) programming through it's D-Sub 15 connection.

Included with this monitor are the roof mount kit with monitor attached, composite video/audio cables and VGA cables.

- Model #: 1530YR
- 15.3 Inch TFT LCD Roof Mount Monitor with VGA
- 1 VGA Input (D-Sub 15), 2 Video Input, 2 Stereo Audio input
- NTSC/PAL Multi-System
- Physical Resolution: 1280 (H) x 768 (V) WXGA
- Supported Resolution: 640 x 480 ~ 1,600 x 1200
- Dot Resolution: 3,840 (RGB) x 768 = 2,949,120 dots
- 16 : 9 Wide Screen
- Brightness, Contrast, Color, Phase, Clock OSD Adjustable
- LCD Brightness: 500 cd/m²
- Contrast: 300 : 1
- Operating Voltage: DC 11V ~ 24V
- Power Consumption: 12V/850mA
- Operating Temperature: 32°F~140°F (0°C~60°C)
- Storage Temperature: -4°F~140°F
- Dimension (in): 16.46 (w) x 12.91 (H) x 1.50 (D)
- Weight (lb): 7.05
- FCC, CE, UL, TUV

Data sheet Download (PDF)
Data sheet Print view
