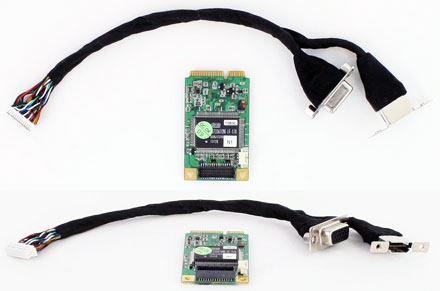

CarTFT VCC-540 Mini-PCIe (1x HDMI, 1x YPbPr, 1x DVI-D, 1x VGA Capture Card)

CarTFT VCC-540 Mini-PCIe (1x HDMI, 1x YPbPr, 1x DVI-D, 1x VGA Capture Card)
  • Mini-PCI-Express !
  • 30/25fp 1920x1080 !

Features :
- H.264 Software Compression 1ch Video Input
- HDMI/YPbPr/DVI-D/VGA input
- HD 1080P at 30fps Single Channel Input
- MiniPCIe (MiniCard) Interface



Share

239.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)

Add to cart
System
Max. FPS 30/25fps @ 1920x1080p
Recording Mode Software Compression, Real-Time Mode
Dimension 30 × 50.95 (mm)
INterface Minicard (PCIe x1)
Video Input 1x YPbPr ,1x HDMI , 1x DVI-D, 1x VGA
(Through on-board wafer connector)
Display Video Format YV12,NV12,YUY2,RGB24,RGB32
Audio Input 1x HDMI Embedded audio
Audio L/R (2x RCA through wafer connector to A/V cable)
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
I/O n/a
Watchdog Yes
Multiple Card
SDK VC++ / C# / .NET / VB / V4L2
OS Support Windows XP / Vista / Windows 7
Windows 8 / Windows 8.1/ Windows 10
Linux 2.6.14 or Higher
( 32-bit and 64-bit )
Display Video Resolution 1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Recording Video Format MPEG4 / H.264 (Software Compression)
Recording Video Resolution (Dual Stream) 1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Description Single Channel Software Compression 1080P at 30fps Input Video Capture Card
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Drivers Download
