CTF1040-CT - VGA/HDMI 10.4" TFT - Capacitive Multi-Touchscreen USB - Video - Autodimmer - Audio [1024x768, Contrast 1200:1, LED] -TRANSFLECTIVE-

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTF1040-<b>CT</b> - VGA/HDMI 10.4" TFT - Capacitive Multi-Touchscreen USB - Video - Autodimmer -  Audio [1024x768, Contrast 1200:1, LED] <b>-TRANSFLECTIVE-</b>
3D 360° View
  • HDMI + D-SUB-15
  • Audio speakers !
  • 1024x768 !
  • Capacitive Multi-Touch !

New ! With HDMI input and capacitive multi-touchscreen (10pt) !

New ! With special sunlight readable transflective TFT and high contrast (1200:1) and Anti-Glare surface !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic
[more]

Share

9999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

4 von 5 Sternen
1 ratings

Add to cart
Compare

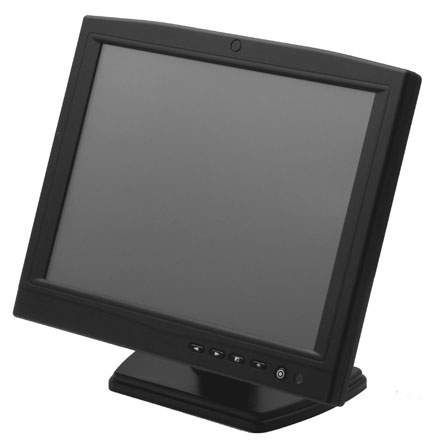

Front

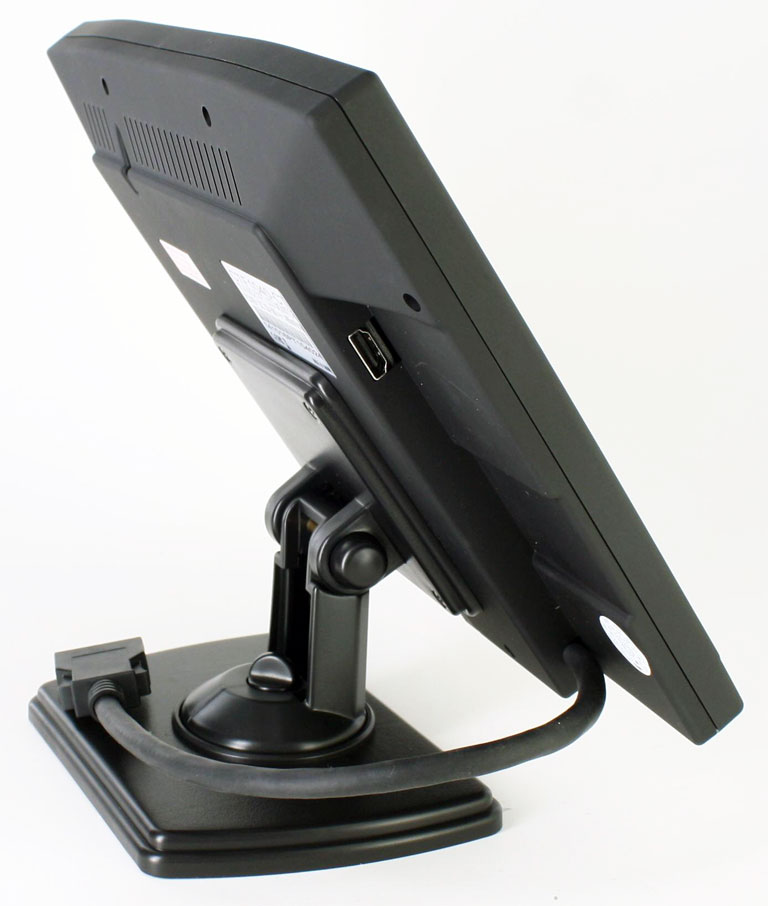

Rear
Side
LCD Size 10.4"
Aspect Ratio 4:3
VGA resolutions 640x480-1920x1200
Native resolution 1024x768
Dot resolution 3072x768
Brightness 500
VGA Input D-SUB 15 + HDMI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 15W
Case size 252 x 208 x 31 mm
Visible area 211 x 158 mm
Certificates CE
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New ! With HDMI input and capacitive multi-touchscreen (10pt) !

New ! With special sunlight readable transflective TFT and high contrast (1200:1) and Anti-Glare surface !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The new CTF-1040-CT TFT-Display is equipped with a 10.4" TFT panel and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. Because of the 4:3 aspect ratio and the size of 10.4", the display is perfectly suitable for beeing used in POS-section or on boats. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has among other features integrated Stereo-speakers and an rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-1040-CT can be used with any PC/MAC with VGA- (or HDMI-) and USB port.

Driver-CD included, compatible with :
- Windows 7/8
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..




Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 10.4" digital
Touchscreen 10-finger capacitive multi
Aspect Ratio 4:3 wide TFT screen
Dot Resolution 3072x768= 2,359,296 dots
Physical Resolution 1024x768
Viewing angle 176° H/V (Super MVA Technology)
Supported Resolutions 640x480-1920x1200
Color configuration RGB stripe
Power input DC 12VDC
Power consumption max. 15W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
1x HDMI input
Dimensions Display Case : 252mm x 208mm x 31mm
Display : 211mm x 158mm
Video input signal 1.0Vp-p, composite video
Brightness 500 cd/m²
Contrast 1200:1
Vibration IEC68-2-6
Operating Temperature -30° bis 70°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Auto-Dimmer
VESA compliant mounting holes (75mm) + metal rail
Auto Power On/Off
Automatic switching to rear camera (by a 12V cable)

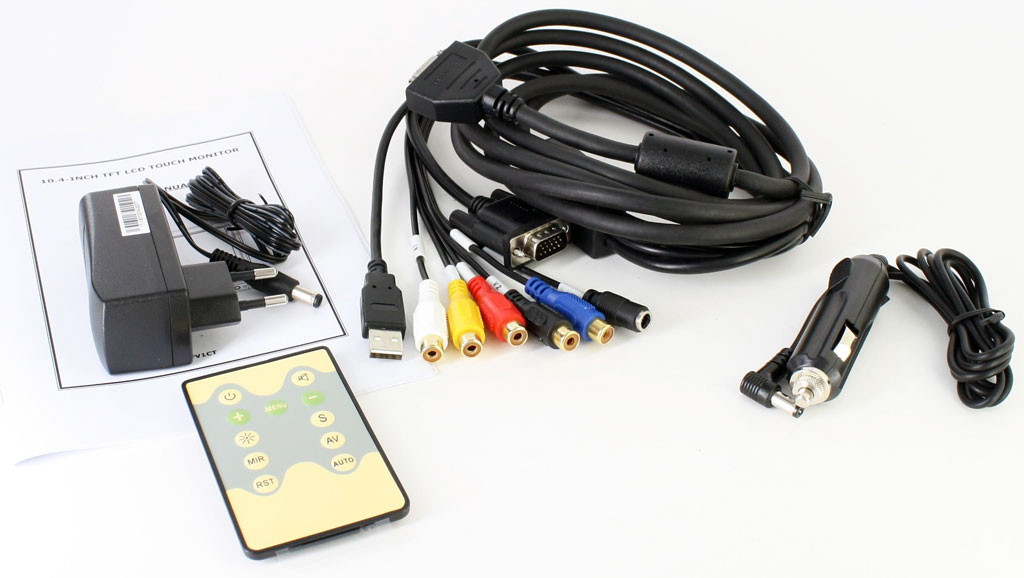

What is included ? - 10.4" VGA/HDMI Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash VESA mounting bracket
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 1 ratings
4 von 5 Sternen from l5BUzEh0 am 26.11.2020 |

Ich verwende den Monitor in meinem Wohnmobil und bin sehr zufrieden mit der Bildqualität (insbesondere auch bei direkten Sonnenlicht hervorangend). Der Monitor schlatet auch sehr schnell auf AV3 um wenn die Rückfahrkamea aktiviert wird. Im Gegensatz zu anderen Monitoren funktioniert das Einschalten auf AV3 auch aus dem Stand-By Modus was ein großer Pluspunkt ist.

Gegen 5 Sterne sprechen jedoch folgende Kritikpunkte:

*) Was ich sehr ärgerlich finde ist das AV3 keine Tonausgabe unterstützt. Meine Rückfahrkamera hat ein eingebautes Mikrofon. Der Ton kann aber im Kamera (AV3) Modus nicht ausgegeben werden.

*) Das Kombikabel ist grundsätzlich super, jedoch stört mich persönlich das recht massive zusätzliche VGA Kabel. Zumal HDMI direkt am Monitor angeschlossen ist. Hier wäre es aus Platzgründen sinvoller gewesen am Ende des Kombikabel einen VGA Eingang zu haben statt dem langen, massiven VGA Kabel (welches ich nicht nutze).

*) Es mag an meinem Seup liegen, aber bei mir ist das Skalierungsverhälznis im OSD verdreht: Bei einer 4:3 Auflösung (1280x960) wird das Bild nur im Skalierungsverhältnis 16:9 korrekt dargestellt. Ändere ich das Skalierungsverhätnis auf 4:3 ist die Aulösung verzerrt.

*) Die dunkelste Einstellung ist in der Nacht noch recht hell, es ist aber gerade noch vertretbar wenn man einen dunklen Hintergrund (Nachmodus der Naviation in meinem Fall verwendet). Eine weitere Stufe zum Abdunkeln wäre optimal.
