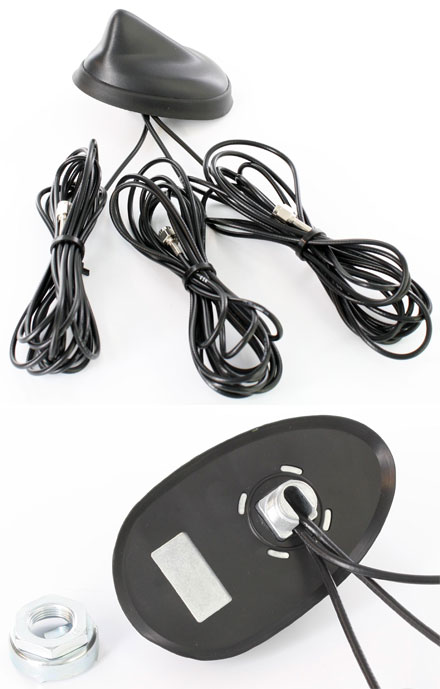

CTFANT-TRIPLE (Fahrzeug-Dachantenne, 3x SMA male 3m, GPS/GSM/UMTS/WLAN/BT)

CTFANT-TRIPLE (Fahrzeug-Dachantenne, 3x SMA male 3m, GPS/GSM/UMTS/WLAN/BT)
  • GPS/GSM/UMTS/3G !
  • WLAN / Bluetooth !
  • Active antenna !
  • SMA connectors !

Combined Roof mount antenna for Fleet management systems, Navigation, Telematics applications in association with WLAN. AMPS, GSM, GPS, Glonass,DCS, PCS, 3G, WiFi and Bluetooth.

3x SMA male, 3m.

GSM/UMTS Specifications
Frequency range: 900 Mhz (GSM 850/900)
Gain: 2.2 dBi
VSWR: <3:1
Polarization: Vertical
Impedance: 50 ohm

GPS Specifications
Center frequency: 1575.42 MHz
Power gain: 26dB at 3V, 27dB at 5V dB
Noise figure: 1.15 -dB
Polarization: RHCP
VSWR: <1.2:1
Impedance: 50 ohm
Supply voltage: 2.7 - 5.5 V
Current: 15 - 25 mA

W-LAN/BT Specifications
Frequency
[more]

Share

59.00 EUR
incl. 19% VAT, plus shipping
In Stock (10 pcs)

Add to cart

Combined Roof mount antenna for Fleet management systems, Navigation, Telematics applications in association with WLAN. AMPS, GSM, GPS, Glonass,DCS, PCS, 3G, WiFi and Bluetooth.

3x SMA male, 3m.

GSM/UMTS Specifications
Frequency range: 900 Mhz (GSM 850/900)
Gain: 2.2 dBi
VSWR: <3:1
Polarization: Vertical
Impedance: 50 ohm

GPS Specifications
Center frequency: 1575.42 MHz
Power gain: 26dB at 3V, 27dB at 5V dB
Noise figure: 1.15 -dB
Polarization: RHCP
VSWR: <1.2:1
Impedance: 50 ohm
Supply voltage: 2.7 - 5.5 V
Current: 15 - 25 mA

W-LAN/BT Specifications
Frequency: 2.4 GHz
Gain: 2 dBi
VSWR: < 2.1
Polarization: vertical
Impedance: 50 ohm

Basic Informations
Size: 64mm x 98mm x 59.5mm
Temperature: -40 to 85 °C
Cable length: 3m
Cable type: RG174U
Con GSM: SMA Male
Con GPS: SMA Male
Con WiFi: SMA Male
Mounting hole: Square (15 x15 mm)

Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
